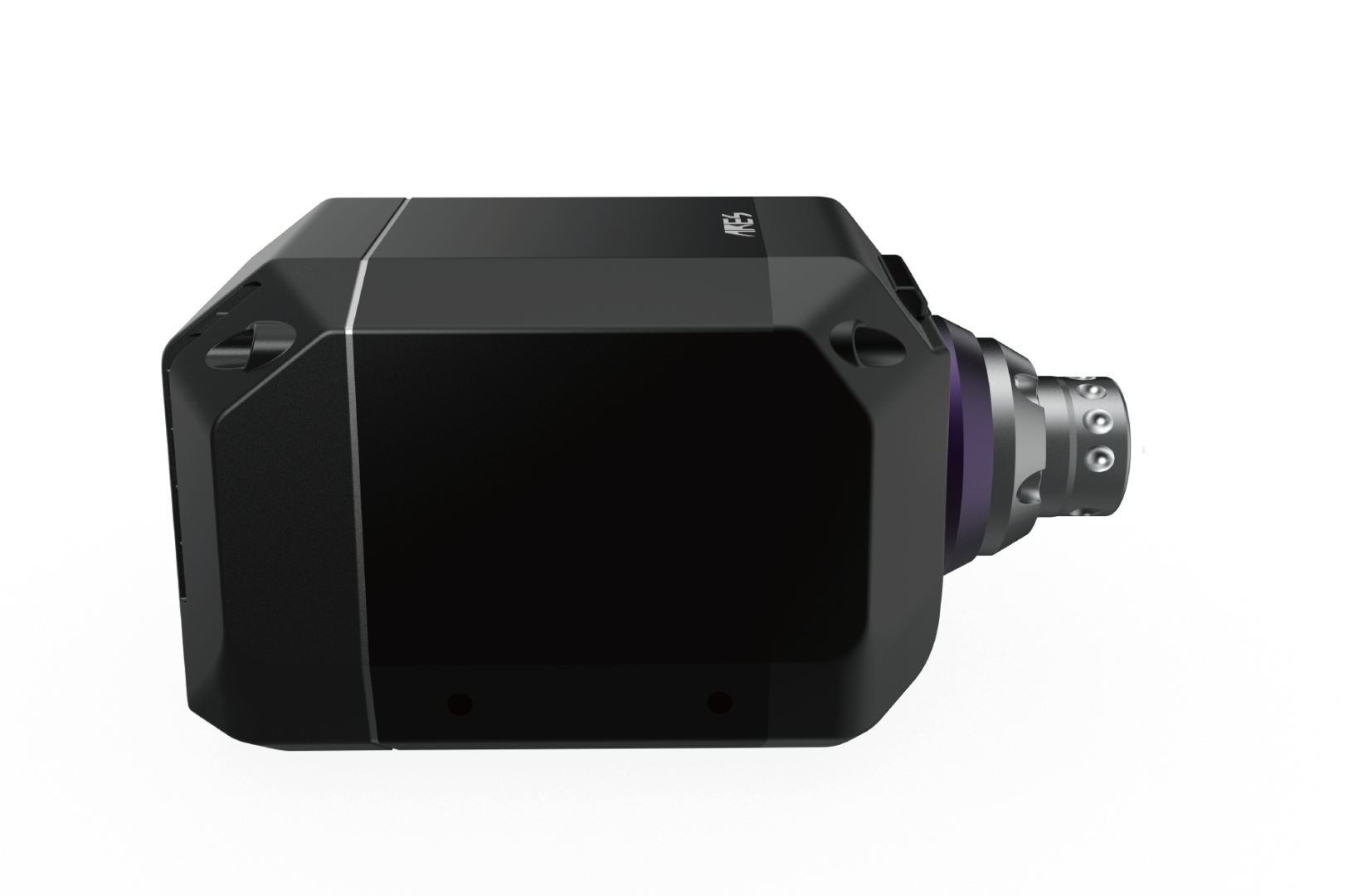

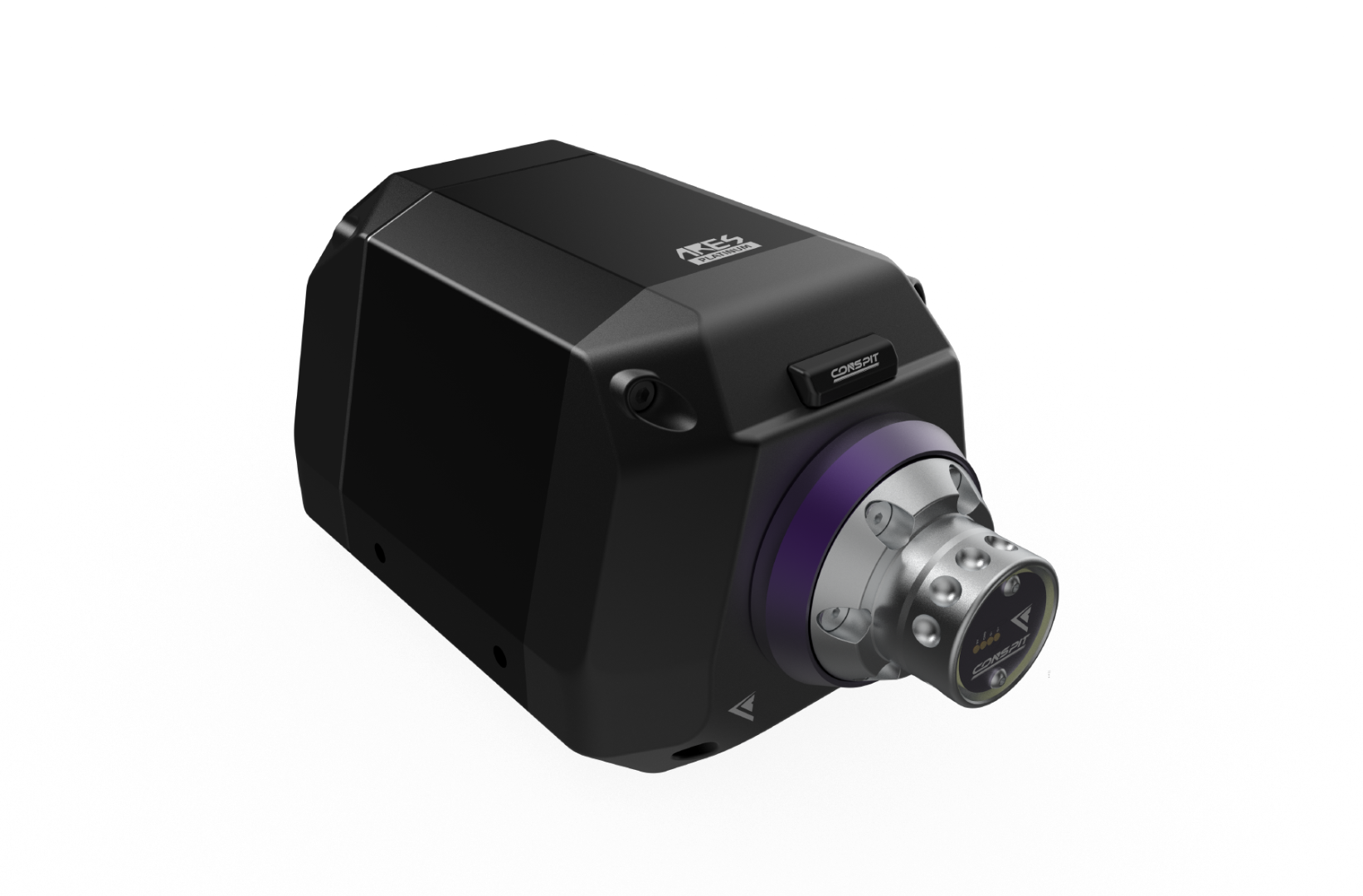

The CONSPIT ARES 12 is a 12 Nm direct drive wheelbase that runs the same skew-pole motor architecture and the same 23-bit optical encoder as the flagship ARES 20 Platinum, in a shorter, lighter 5.6 kg housing. You do not give up resolution or feel at this price. You give up headroom.
Twelve newton meters is more than most people use
Drivers on 20 Nm bases rarely run anywhere near full output, because the detail lives in the small forces rather than the big ones. At 12 Nm you still feel the front axle load up in a GT car and the rear step out under power, and you can mount the base to a solid desk or a light wheel stand instead of building a rig around it.
23-bit optical encoder
Optical, not magnetic. At the same nominal resolution, an optical encoder reads position more accurately and holds that accuracy over years of use. Small corrections register exactly as you make them, and the base does not develop a vague center over time.
A motor built for sim racing
A dual skewed-pole design on both the stator and the rotor holds cogging torque under 2.3 percent, so the wheel turns smoothly with no notchiness through slow corners. Torque slew rate reaches 9.5 Nm/ms, which is what lets a kerb strike or a tire letting go arrive as a sharp event rather than a soft one. CONSPIT validated the output with a dynamic torque sensor between the wheel and the motor shaft, resolving below 0.01 Nm, so the rating describes what actually reaches your hands.

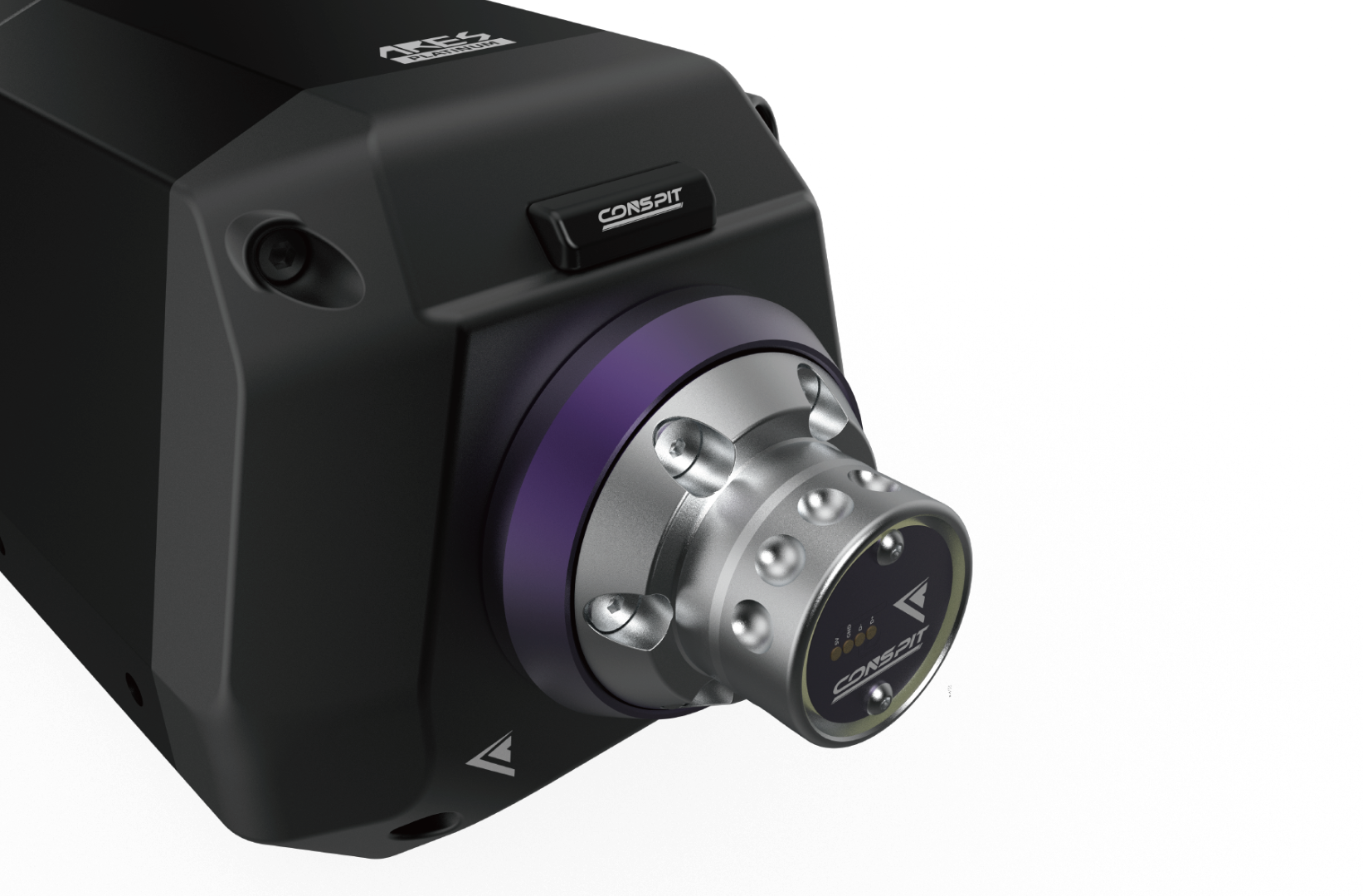

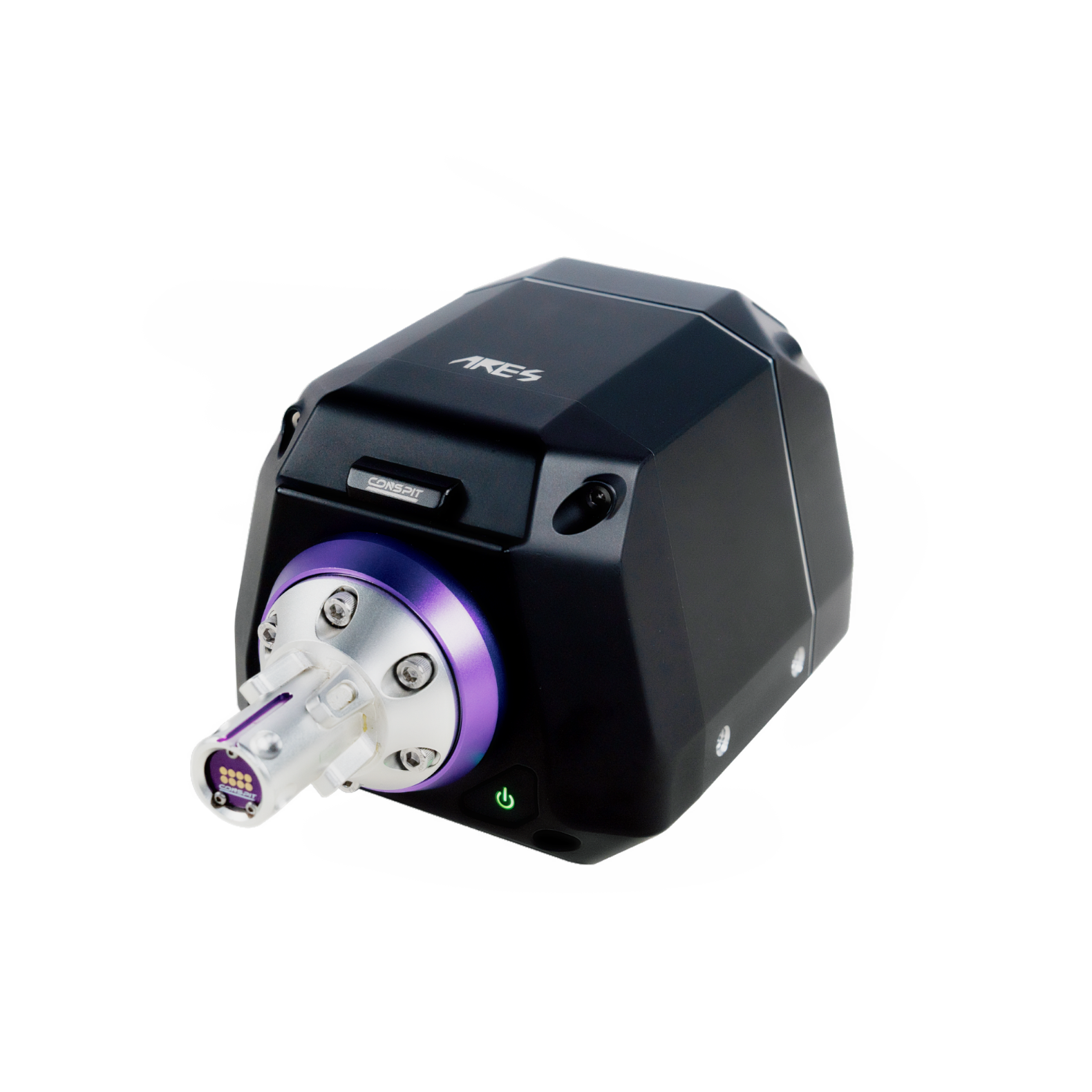

Choose a CDR or CDP quick release
Pick the quick release that matches the wheels you already own. CDR is CONSPIT's newer auto-locking system, built to the dimensions most of the sim racing industry has settled on, so it mates with a wide range of third-party wheels (extra wheel sides: CONSPIT CDR quick release). CDP is the three-bolt 50 mm PCD pogo-pin block, with a 50 to 70 mm adapter available. Motor, encoder, housing and torque are identical either way.

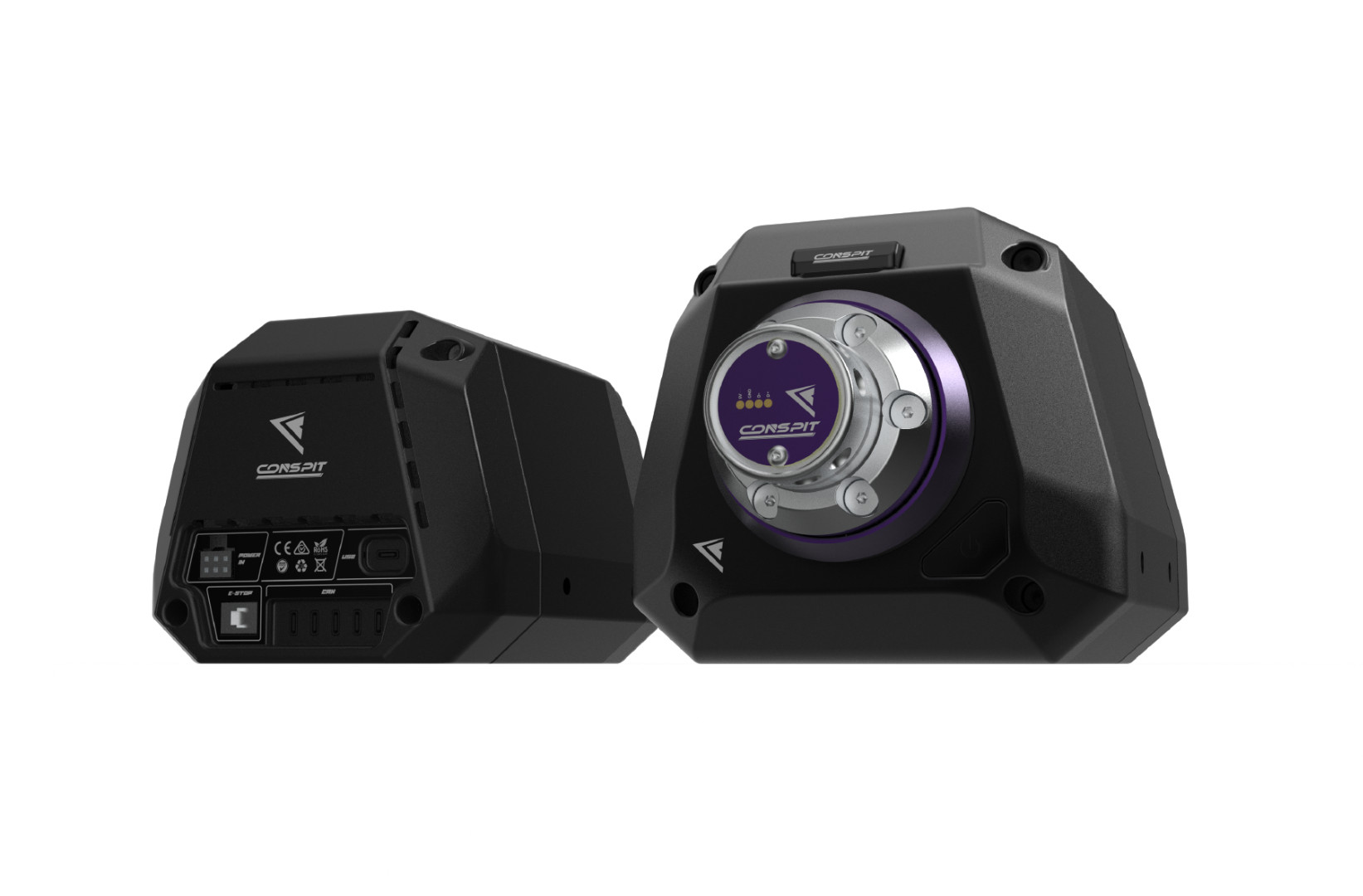

Compact and cool

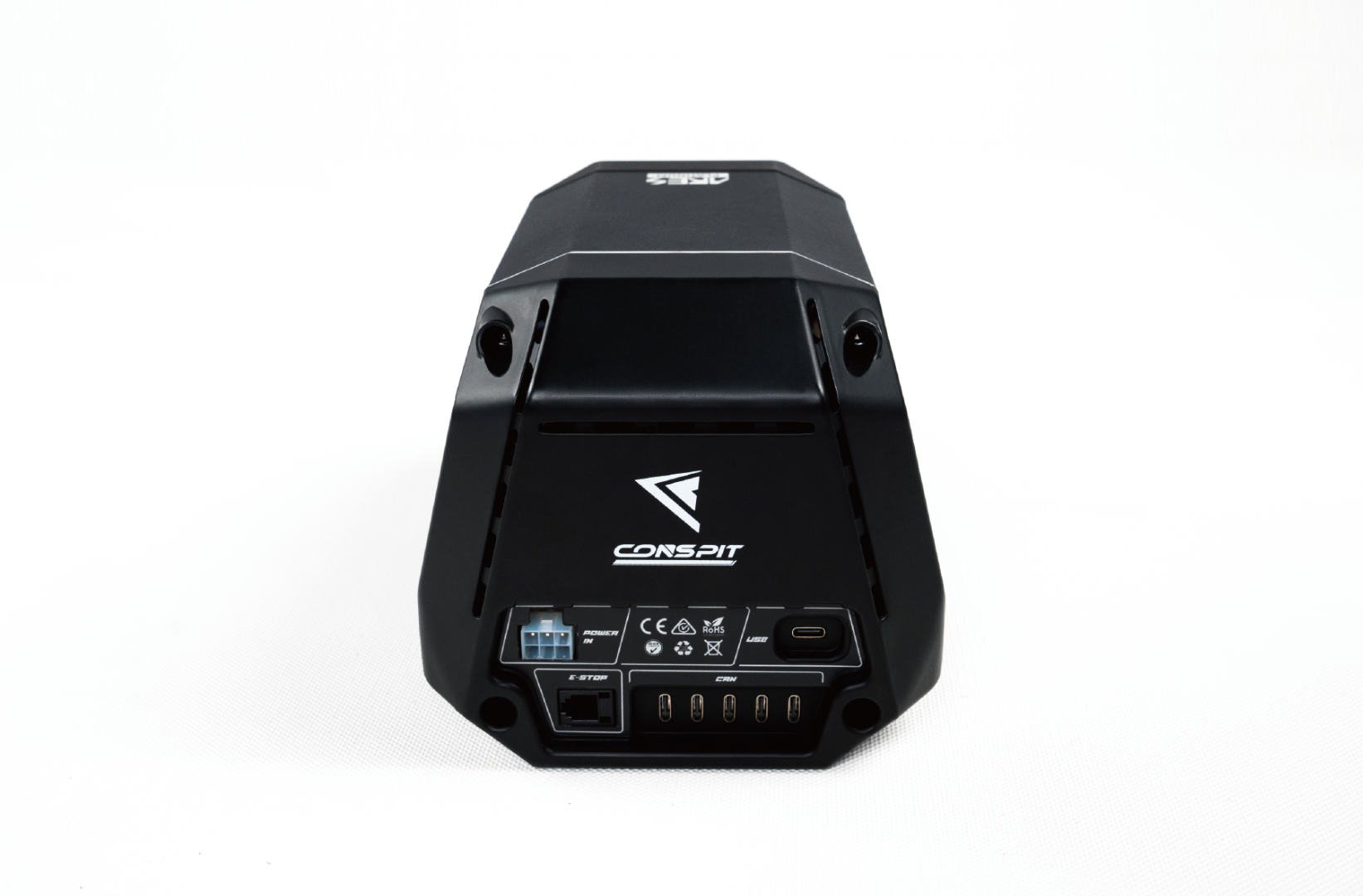

The 5.6 kg aluminum housing uses real-time temperature monitoring to hold torque through a long stint instead of fading in the last ten laps. Mounting points are M6 x 4 on the bottom and M8 x 4 on the sides. Magnetic POGO contacts on the front face take add-on modules such as the CSD Nano dashboard, and the optional CES external emergency stop cuts the motor instantly, which matters for coaching, sim racing centers and supervised young drivers.
CONSPIT Link 2.0 with pro-built presets
Configure the base, tune force feedback, monitor status and save presets per game or per car in CONSPIT Link 2.0. CONSPIT ships official presets built by professional drivers and vehicle dynamics engineers, including Laurin Heinrich, so you start from a proven setup instead of a wall of sliders.
Specifications
- Holding torque: 12 Nm
- Encoder: 23-bit optical
- Torque slew rate: 9.5 Nm/ms
- Cogging torque: Under 2.3 percent (dual skewed-pole stator and rotor)
- Weight: 5.6 kg
- Quick release: CDR (auto-locking) or CDP (3-bolt 50 mm PCD pogo-pin), selected above
- Mounting: M6 x 4 (bottom), M8 x 4 (sides)
- Expansion: Magnetic POGO front interface for add-on modules; optional CES external emergency stop
- Software: CONSPIT Link 2.0
Who this is for
The ARES 12 is a smart first direct drive base, and a real step up from a belt or gear-driven wheel. If you want more torque, look at the ARES 20 Platinum. Complete the setup with the 310 APEX, 300 GT or 290GP wheel and CPP EVO hydraulic pedals, compare every wheel base we carry, or see the full CONSPIT lineup.
Ships from within the US through Velocity Pro Sims. Not sure which quick release your wheels use? Get in touch and we will confirm before you order.
