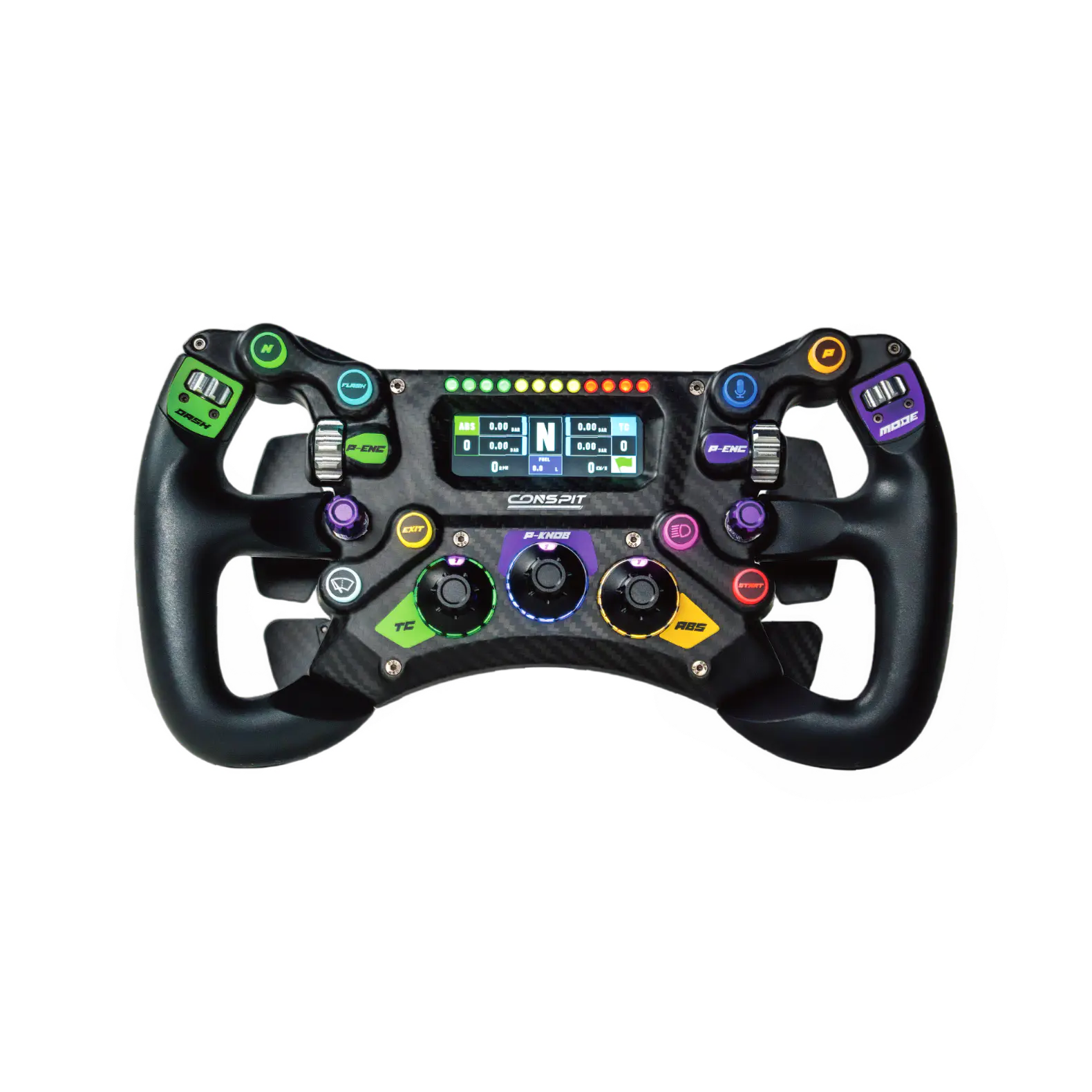

The CONSPIT 300 GT is a 300 mm GT-style sim racing wheel built around a carbon fiber front plate and a CNC-machined aluminum body. At 1150 g without a quick release, it keeps rotational inertia low on a direct drive base, so quick direction changes feel sharp instead of heavy.
Carbon and aluminum construction
The front plate is compression-molded from 12 layers of T-300 carbon fiber prepreg and weighs 43 g. The main body is a single piece of aluminum alloy, CNC-machined after casting. The grips use an aluminum internal frame wrapped in TPU, which holds up to wear and skin oils better than the TPE rubber common at this price, and the shape works with a two- or three-finger hold below the spokes.
Controls with encoder remapping
The faceplate carries 8 RGB backlit push buttons (500 g actuation, silicone-damped), 2 thumb encoders, 3 twelve-position rotary knobs, 2 vertical encoder dials and 2 seven-way joysticks, plus two shortcut buttons on the rear housing within reach while you grip the wheel. The rotary knobs run in incremental (+/-) or absolute mode, and turning the center knob remaps the vertical encoders, so one pair of dials can cover TC1 and TC2 in one position and brake bias and ABS in another. In total the wheel supports up to 110 independent button outputs.

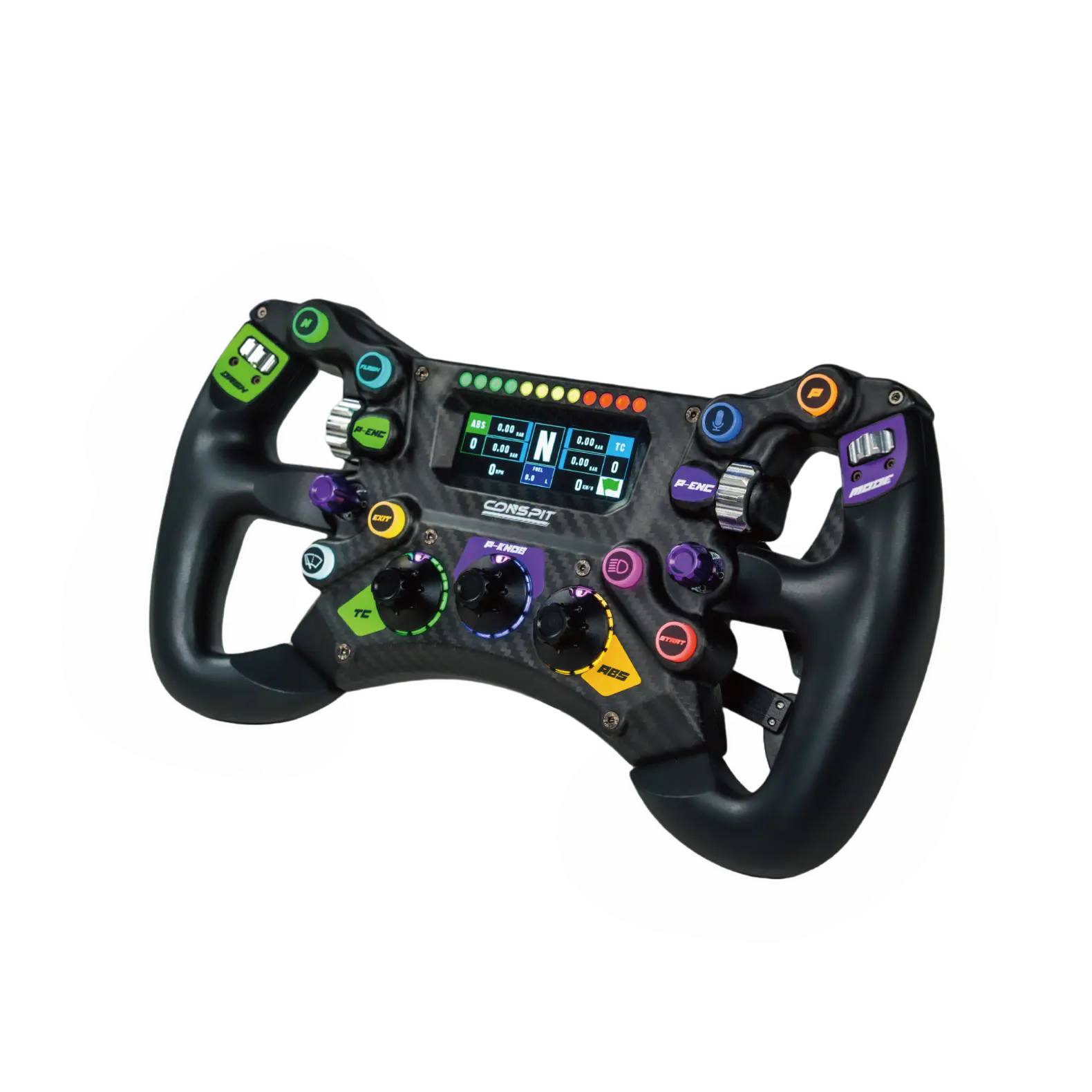

2.99-inch display and 56 LEDs
The built-in 800 x 268 color display shows 7 telemetry dash pages, with more arriving in software updates, and it shows your current encoder remap assignments in real time so you always know what the dials are set to. Lighting totals 56 LEDs (8 button lights, 12 RPM lights and 36 knob position indicators), all configurable through SimHub.

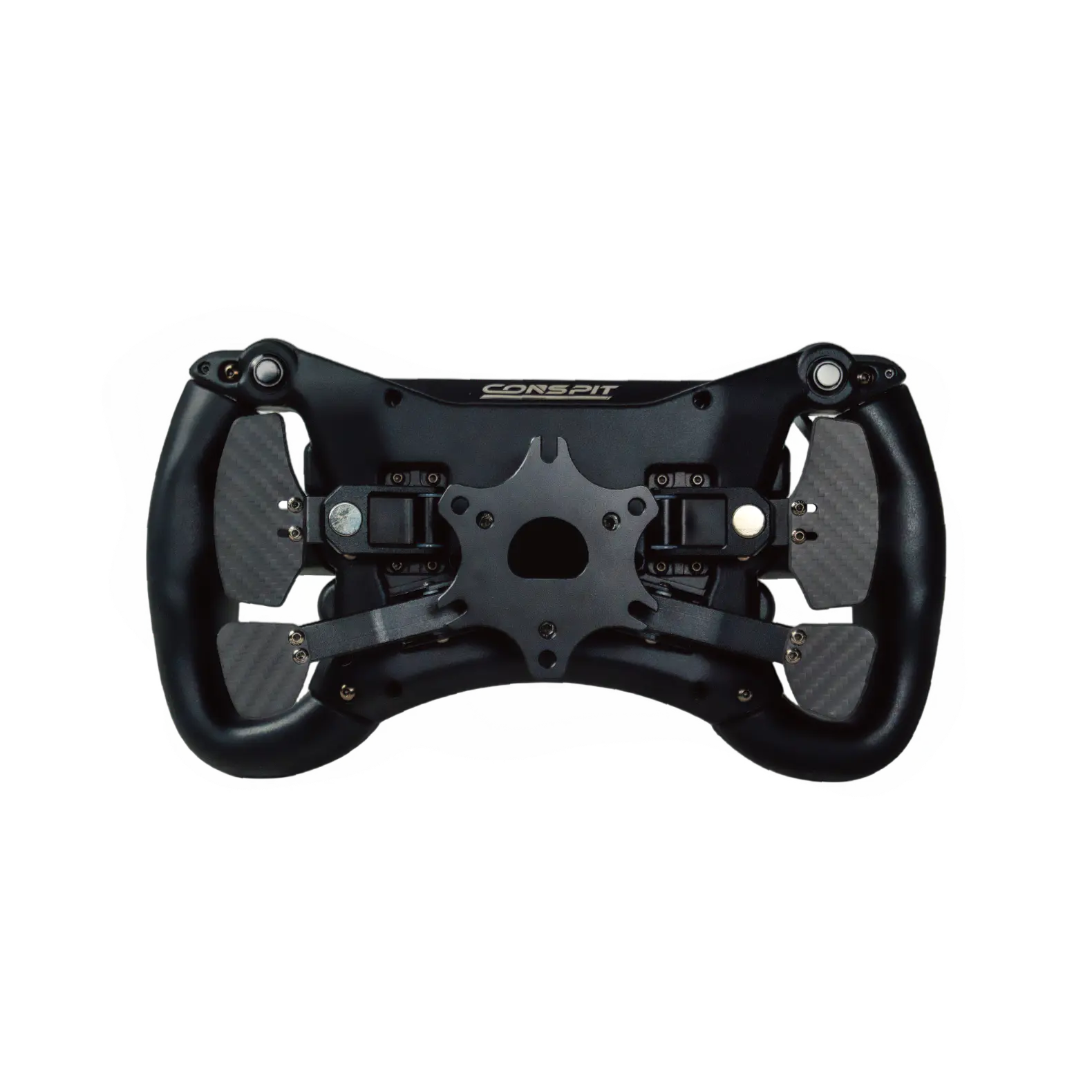

Magnetic Hall paddles
The shift paddles are magnetic Hall-sensor units with three swappable pressure settings: 550, 660 or 900 gf. The dual clutch paddles are Hall-sensored too, with bite point and independent-axis modes set in CONSPIT Link 2.0.
Fits most wheelbases
The 300 GT mounts through a standard 70 mm PCD adapter and connects over USB with a detachable coiled cable, so it works with wheel-side quick releases for Simucube, Fanatec, Simagic, Asetek, VRS, MOZA and other bases that use the 70 mm pattern (wheel-side quick release sold separately). On a CONSPIT ARES base, the optional CDP quick release connects directly.
Specifications
- Style: 300 mm GT wheel
- Materials: Carbon fiber front plate, aluminum alloy body
- Dimensions: 300 x 165 x 90 mm
- Weight: 1150 g excluding QR/adapter
- Display: 2.99-inch, 800 x 268 color
- LEDs: 12 rev lights, 36 knob lights, 8 RGB button lights
- Controls: 8 RGB buttons, 4 encoder wheels, 3 x 12-position rotary switches, 2 x 7-way joysticks, up to 110 outputs
- Paddles: Silent magnetic Hall shifters (550/660/900 gf), 2 modular Hall clutch paddles
- Mount: 70 mm PCD
- Platform: Windows PC
- Connection: USB direct or CONSPIT CAN
- Software: CONSPIT Link 2.0 and SimHub
Who this wheel is for
The 300 GT is for GT3, GTE and endurance racers who want carbon, a real display and a deep control set at a sensible price, and for owners of other bases who want to try CONSPIT without changing wheelbase. Pair it with a CONSPIT ARES 12, compare all sim racing steering wheels, or see the full CONSPIT lineup.
Ships from within the US through Velocity Pro Sims. Not sure it fits your wheelbase? Get in touch and we will confirm before you order.
