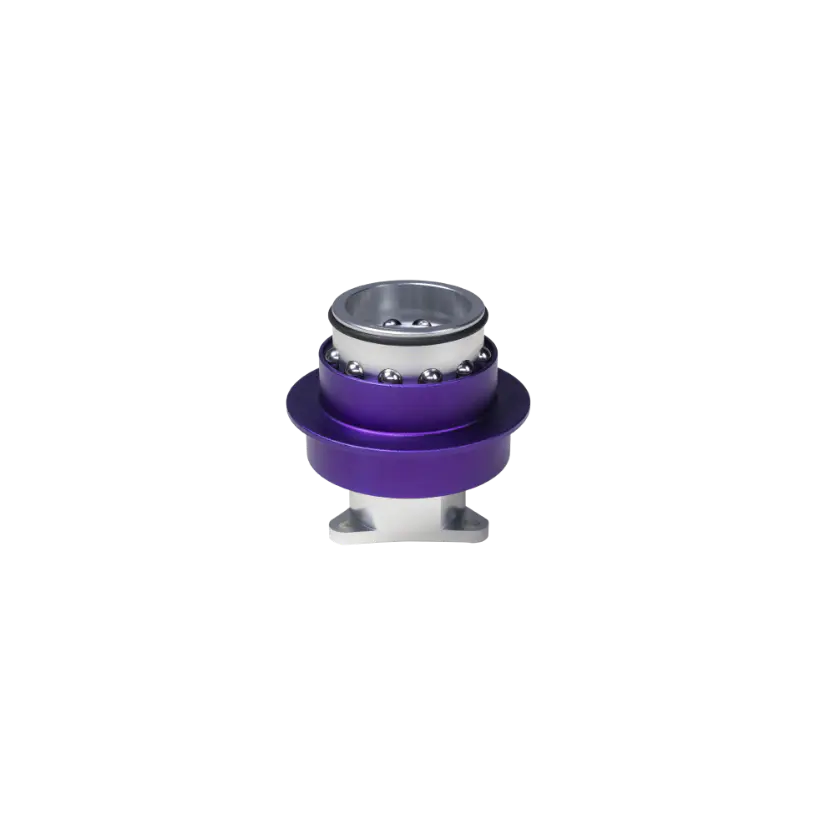

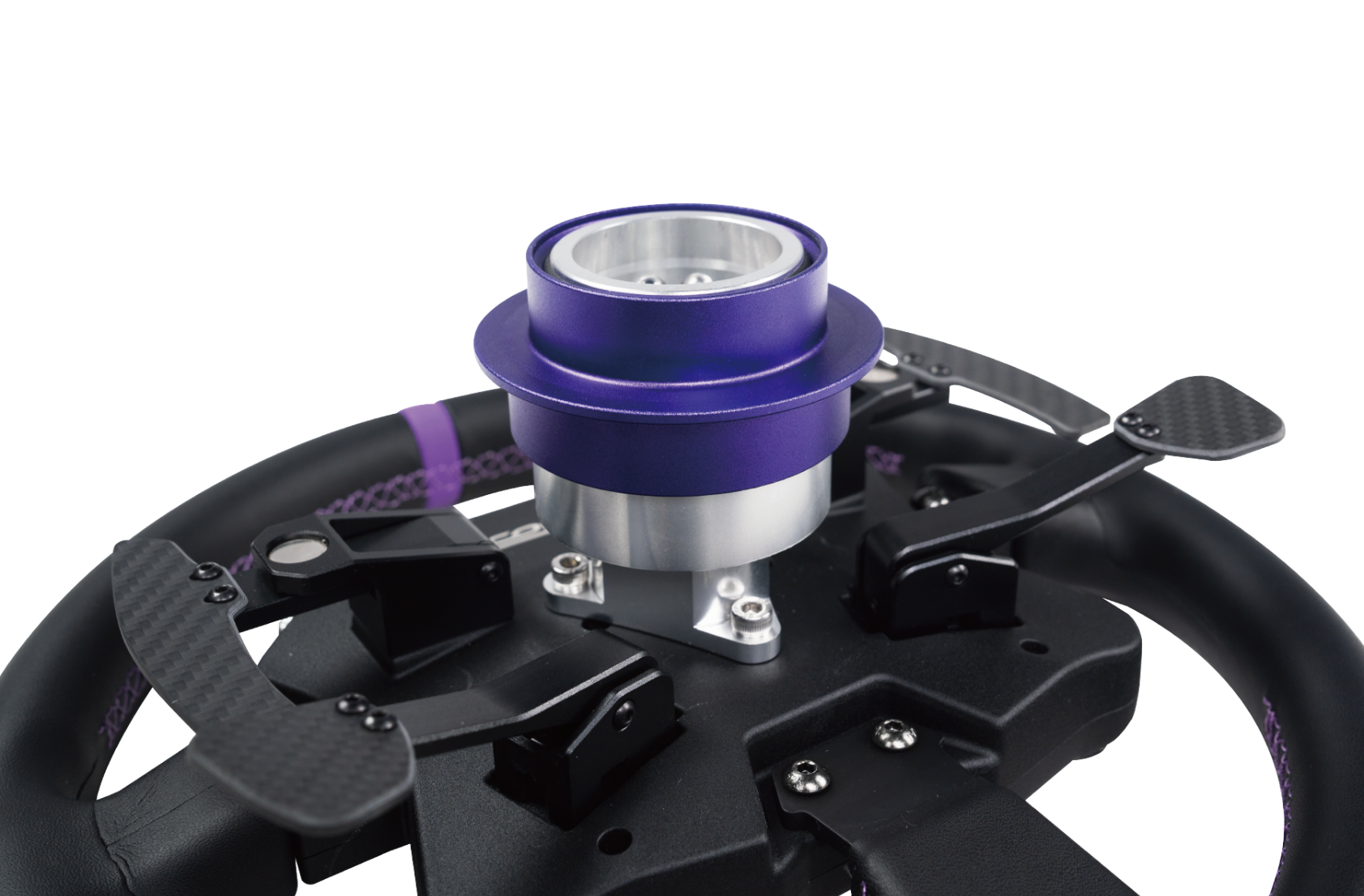

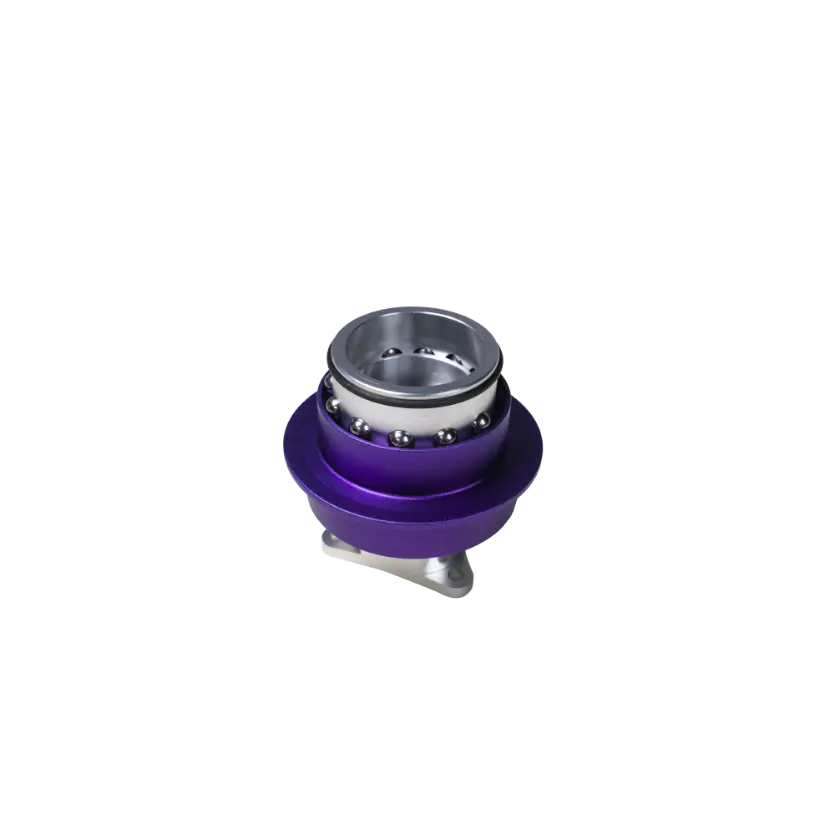

The CONSPIT CDR Quick Release is the wheel-side half of CONSPIT's auto-locking CDR system. Bolt it to your wheel and it clicks onto a CONSPIT wheelbase fitted with the CDR base side, then releases with a pull of the ring when you want to swap wheels.
Built to industry-standard dimensions
CDR is designed around specifications widely adopted across sim racing, which keeps it mechanically compatible across a range of wheelbases and steering wheels and makes it easy to standardize a multi-wheel setup.

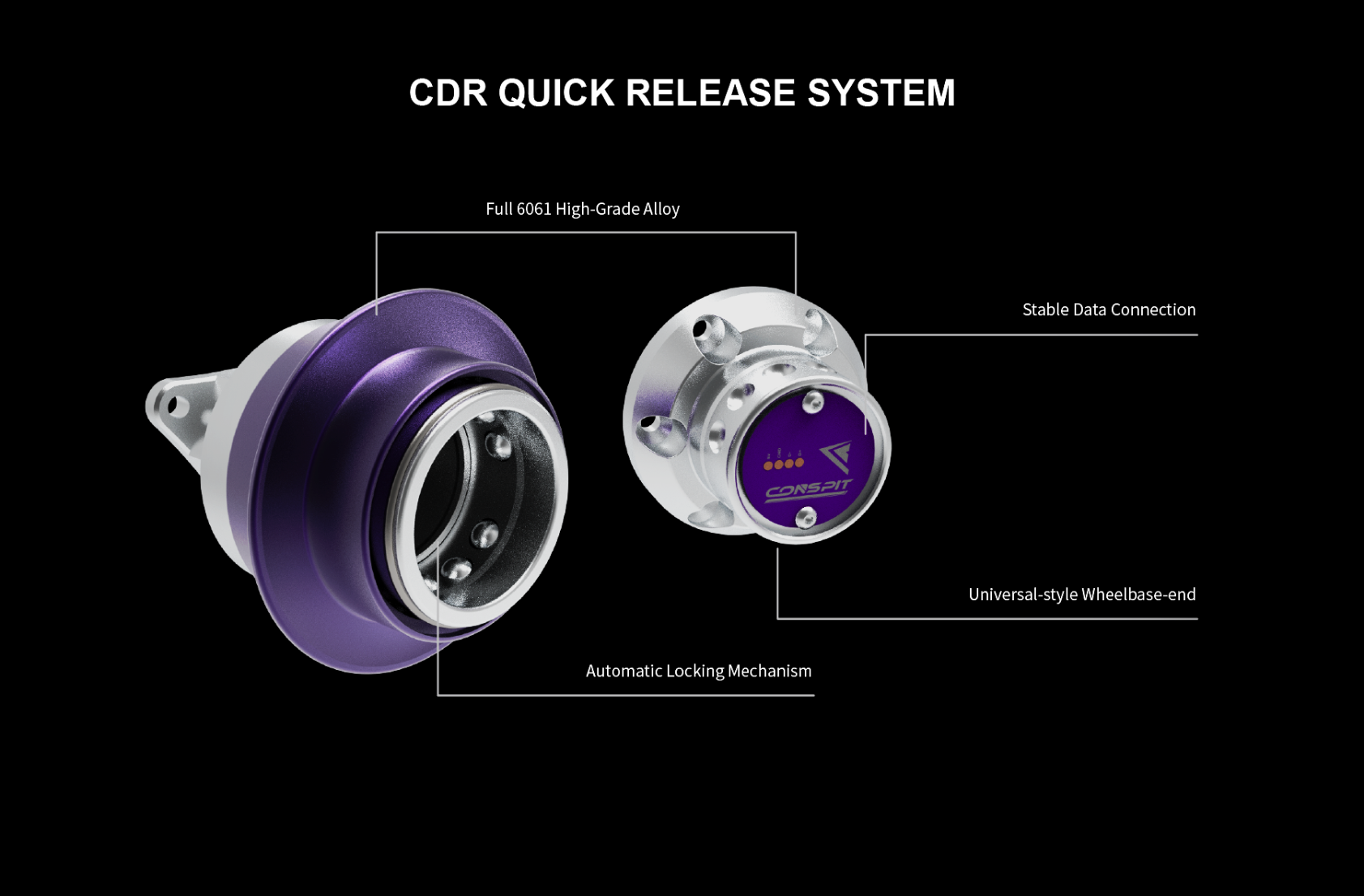

Automatic locking
Pull the locking ring up once and the system is armed. Slide the wheel on and it locks itself, with no need to hold the ring. To take the wheel off, pull the ring and it pops free.
Stable signal, zero play

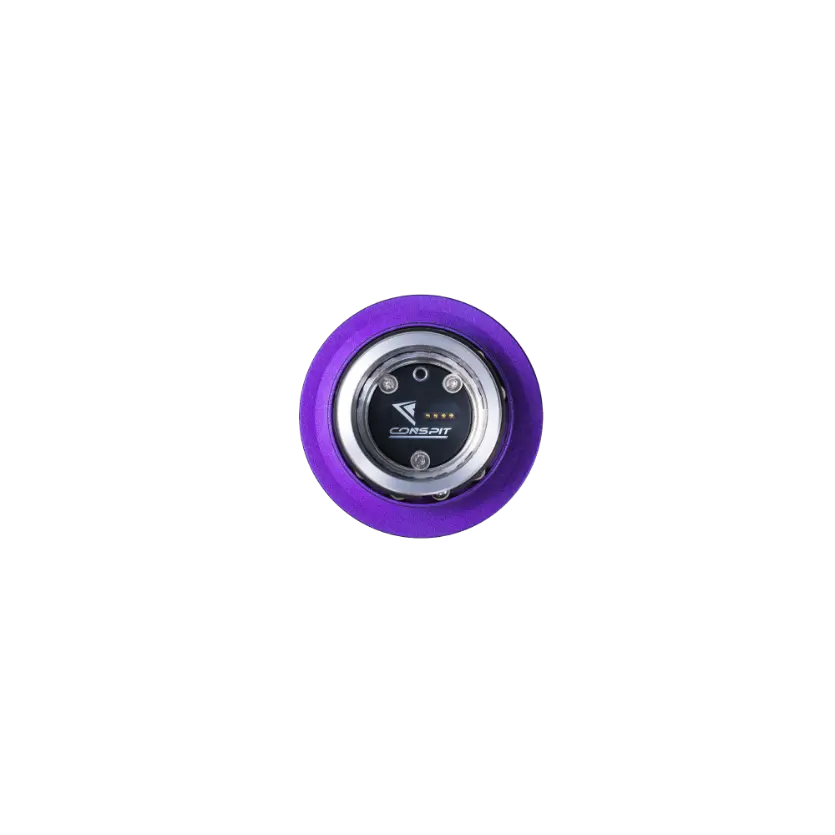

Integrated spring contacts keep the electrical connection stable even in environments prone to electromagnetic interference, and CONSPIT rates the link as more dependable than wireless alternatives. Optimized contact geometry keeps the connection free of play under prolonged heavy loads.
Specifications
- Side: Wheel side
- Dimensions: 81 x 83 x 83 mm
- Weight: 315 g
- Material: Aluminum alloy
- Wheel mounting: 3 x 5 mm bolts on a 50 mm PCD
- Connection: Pogo-pin contacts to CONSPIT wheelbases
- Optional parts: 50-70 mm PCD adapter, Quick-Con adapter, USB-A adapter spacer, CDR wheelbase side
Who this is for

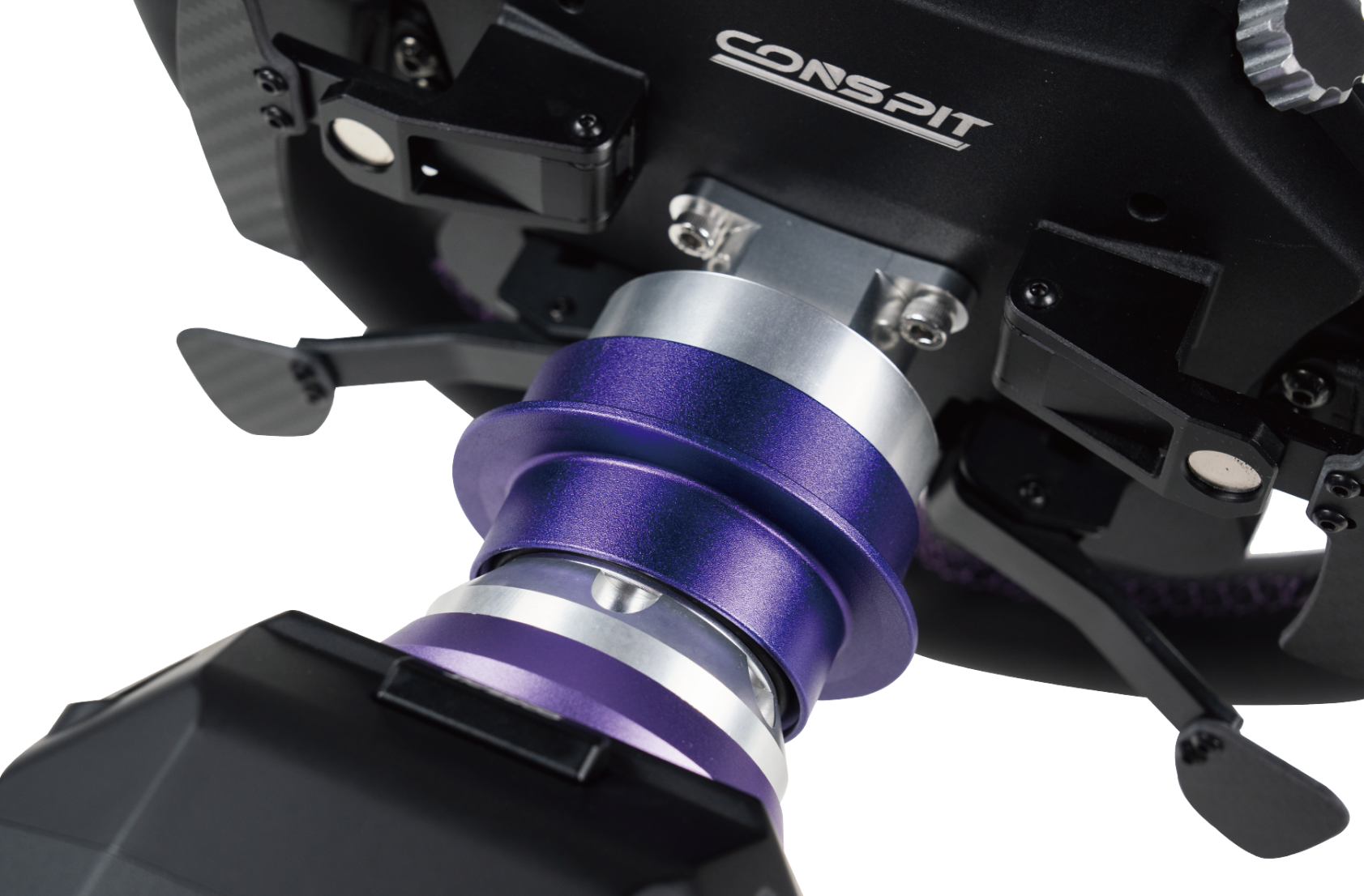

Add a CDR wheel side to every wheel you want to run on a CDR-equipped ARES 12 or ARES 20 Platinum, so switching from a GT wheel to a formula wheel takes seconds. Browse more sim racing accessories or the full CONSPIT lineup.
Ships from within the US through Velocity Pro Sims. Not sure it matches your wheel's bolt pattern? Get in touch and we will confirm before you order.
