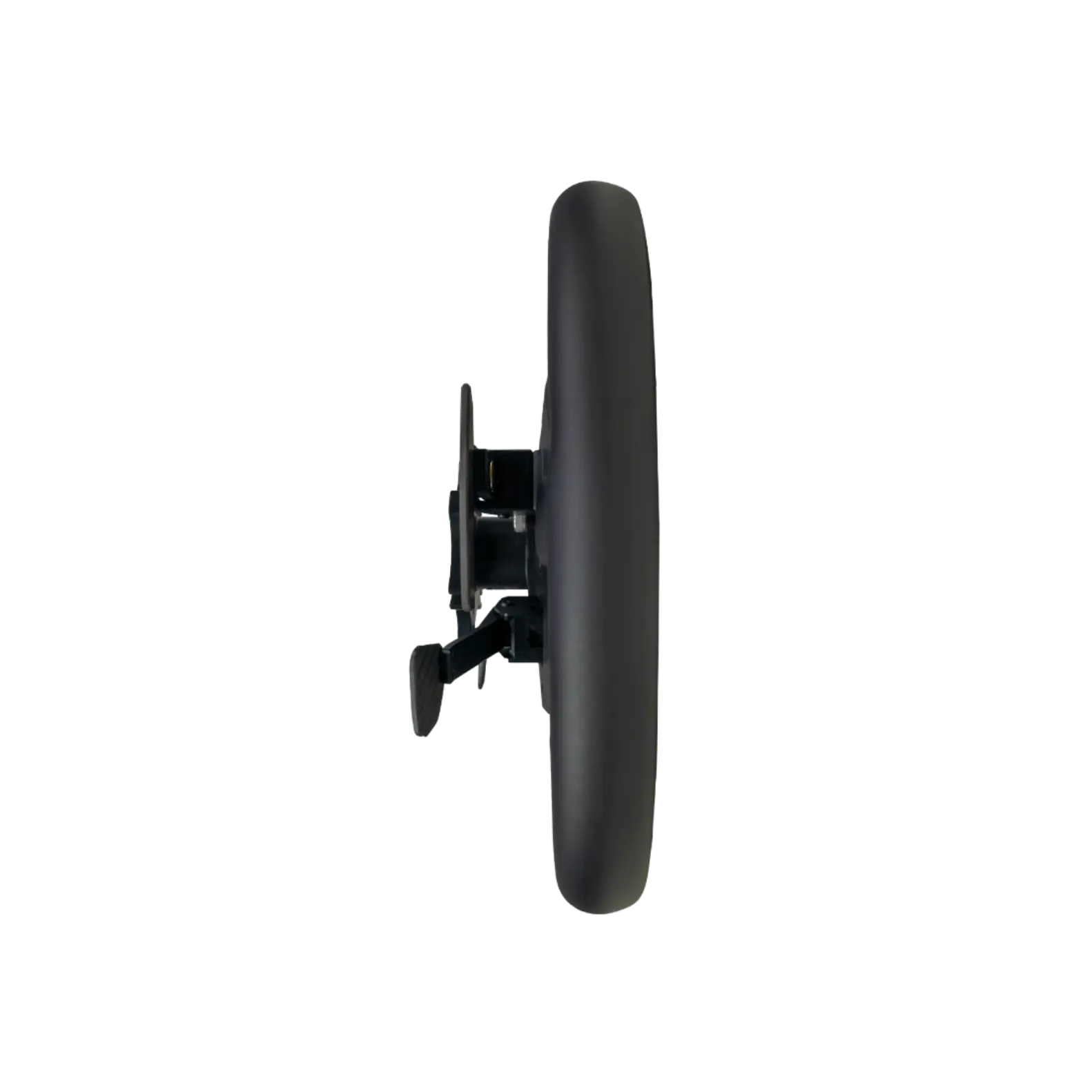

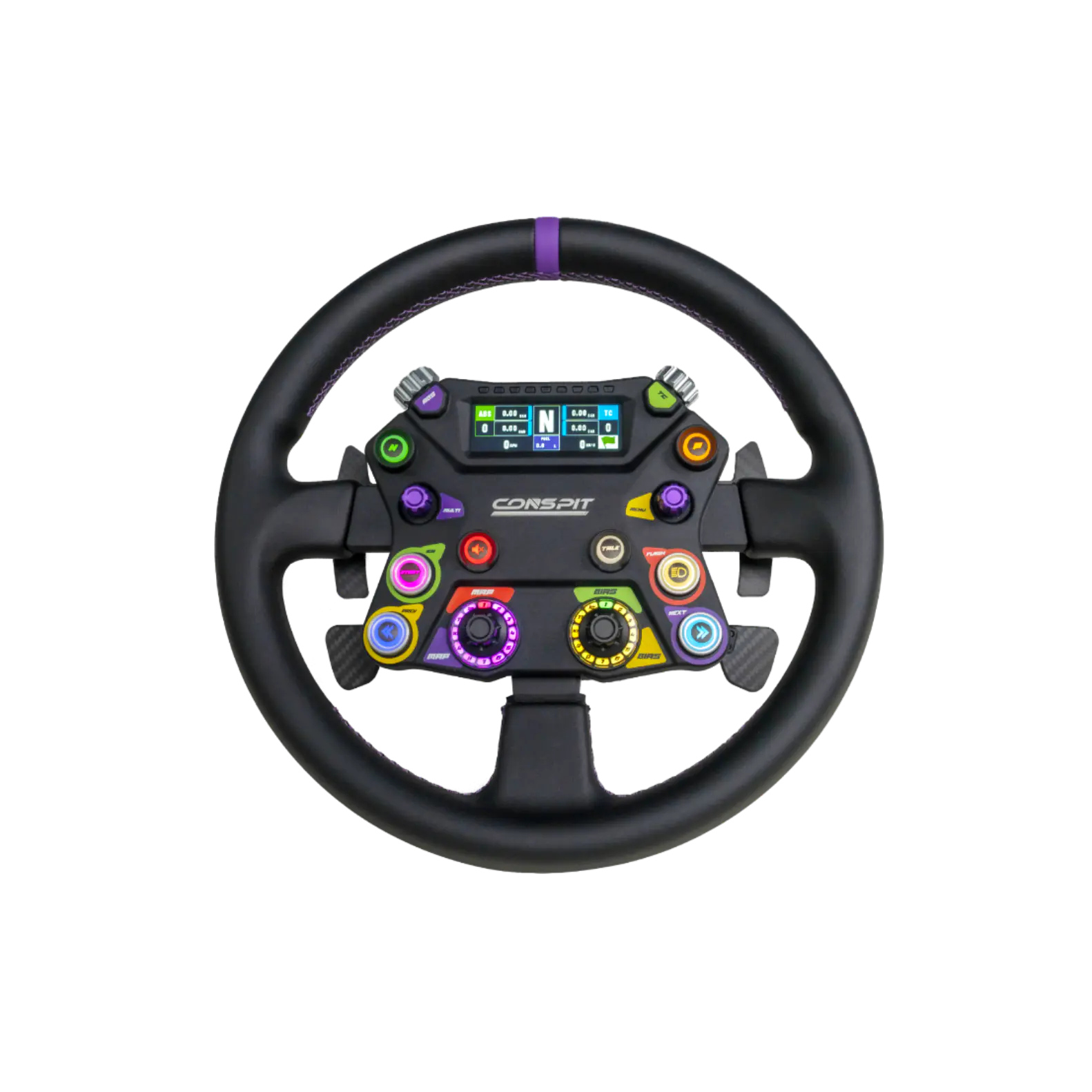

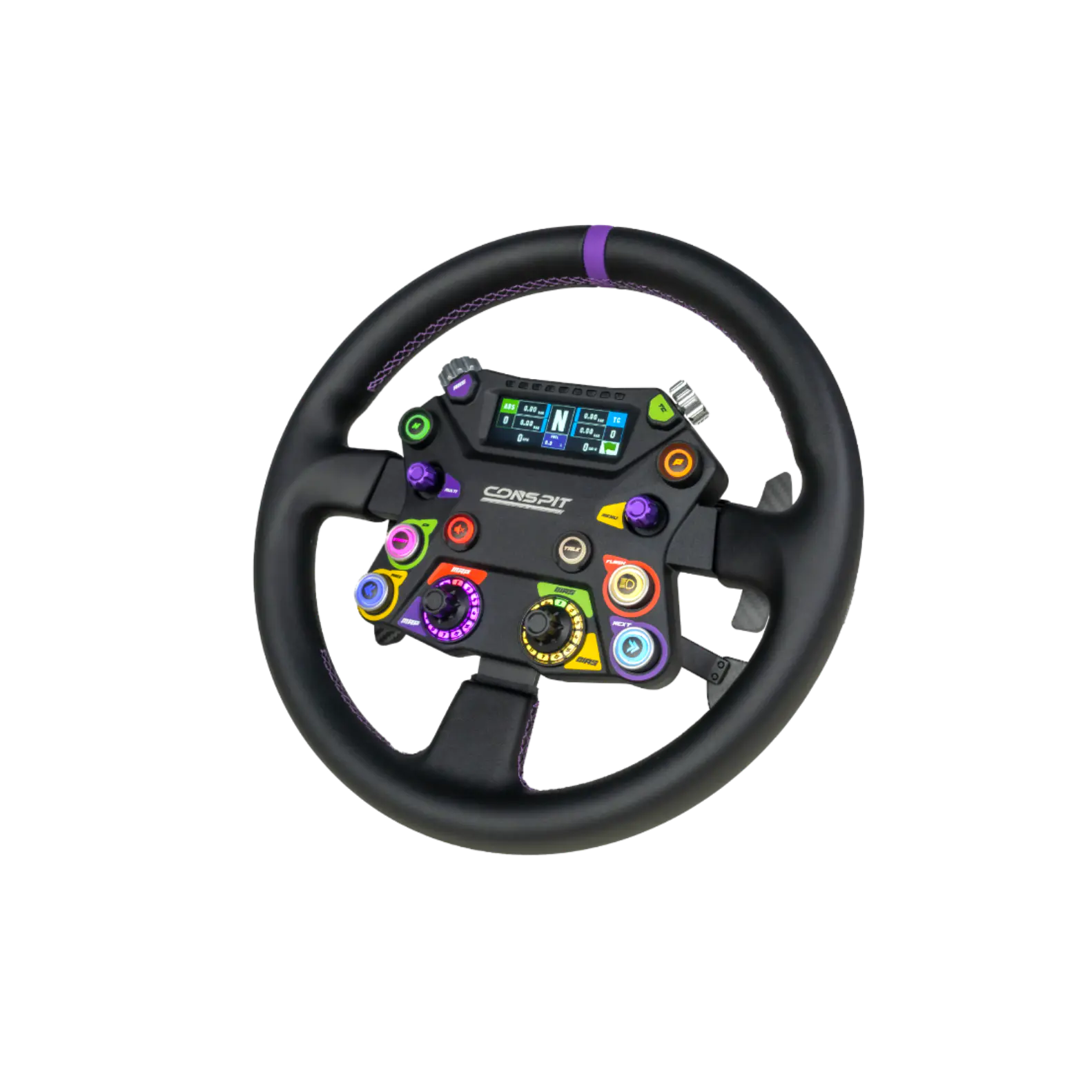

The CONSPIT 310 APEX is a 310 mm round sim racing wheel built on CONSPIT's open-wheel hub, with a built-in 2.99-inch telemetry display, up to 104 programmable inputs and a full-metal construction that brings pro-level controls to entry-level sim racing. This version comes with the Quick-Con adapter for a standard 70 mm PCD mount and its own USB connection.
Die-cast aluminum with a 3D front panel
The front and rear housings are precision die-cast aluminum alloy, which keeps weight down while adding rigidity and vibration damping. The contoured 3D front panel follows CONSPIT's ecosystem design language and puts every control where your thumbs expect it.
310 mm microfiber rim
The standard rim is wear-resistant, eco-friendly microfiber synthetic leather with seamless stitching through the grip zones, purple accent stitching and a center alignment marker. The hub accepts multiple rim designs, so the wheel can change with your driving.
104 inputs with encoder remapping
- 8 RGB buttons with 500 g actuation and short, crisp travel
- 2 encoder dials placed for your thumbs, each supporting 24 input combinations through remapping
- 2 seven-way funky switches, each assignable to up to 7 commands
- 2 twelve-position rotary knobs that switch between incremental (+/-) and absolute modes in software, with every position RGB-backlit
- Encoder remapping (patent pending): turn the function dial and the two encoders take on new jobs, such as TC1 and TC2 in one position and brake bias and ABS in another
Built-in 2.99-inch display and 41 LEDs
CONSPIT's own 800 x 268 screen runs 7 customizable dash pages, with more layouts arriving through updates. Lighting totals 41 programmable LEDs (8 button backlights, 9 RPM lights and 24 rotary position lights), all addressable through SimHub for shift lights and telemetry cues.

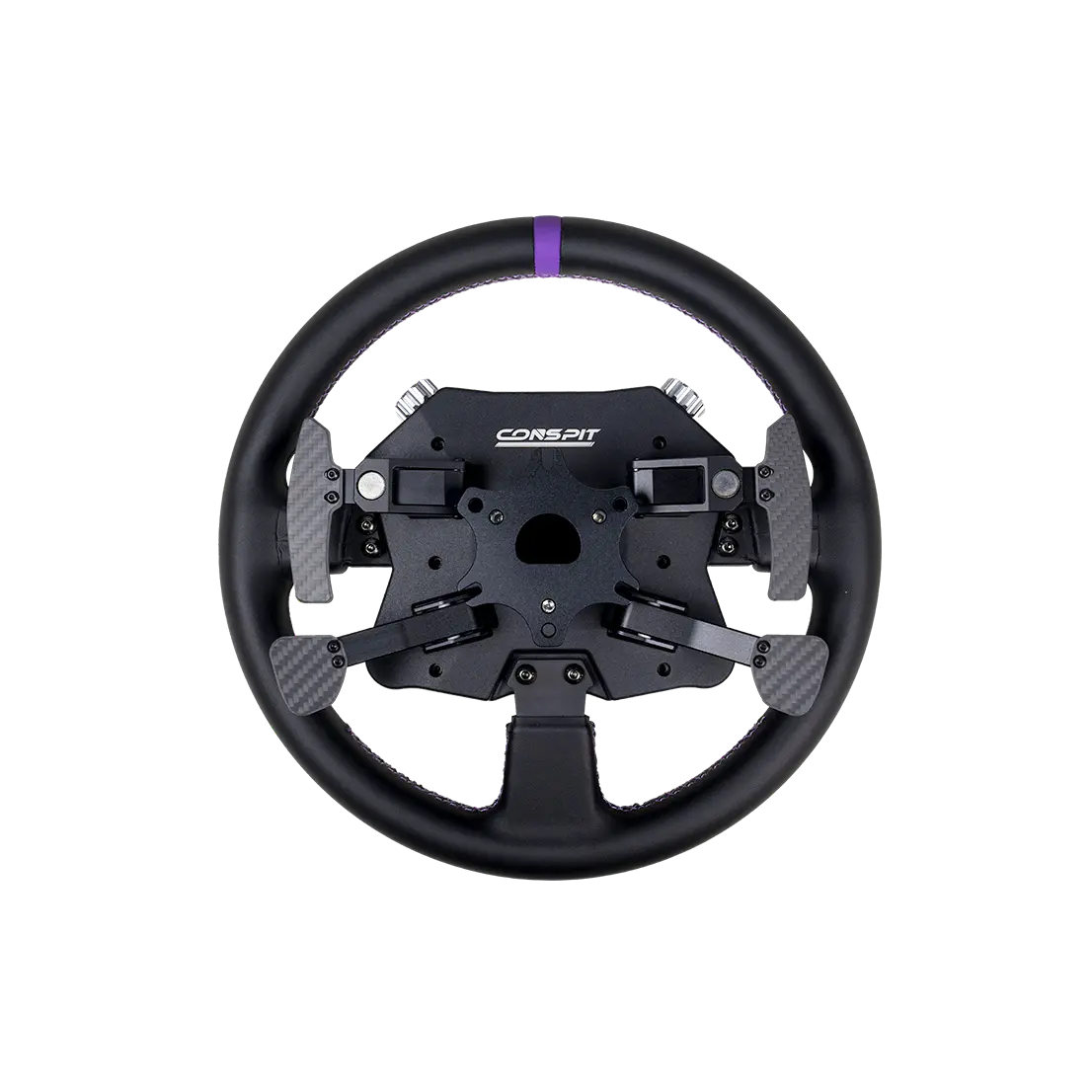

Magnetic Hall paddles and dual clutches
Magnetic Hall-effect shift paddles offer two resistance settings, 660 gf and 900 gf, for crisp and consistent gear changes, and dual Hall-sensor clutch paddles support the clutch modes you need for clean race starts.

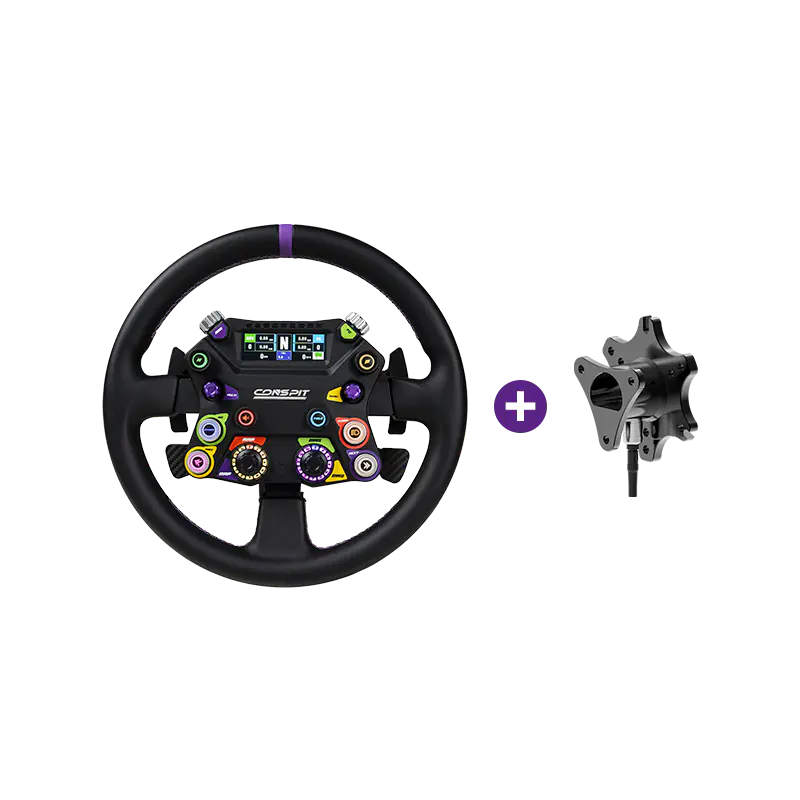

Quick-Con adapter included
The included Quick-Con adapter uses the standard 70 mm PCD pattern with a heavy-duty connector and a detachable coiled USB cable, so the 310 APEX fits a wide range of wheel-side quick releases. Running a CONSPIT base? The optional CDR quick release connects the wheel directly.
Specifications
- Rim: 310 mm, microfiber synthetic leather
- Materials: Aluminum alloy and steel
- Dimensions: 310 x 310 x 89 mm
- Weight: 1520 g including rim, excluding QR/adapter
- Display: 2.99-inch, 800 x 268 color
- LEDs: 9 rev lights, 24 knob lights, 8 RGB button backlights
- Controls: 8 RGB buttons, 2 encoder wheels, 2 x 12-position rotary switches, 2 x 7-way joysticks, up to 104 inputs
- Paddles: Silent magnetic Hall shifters (660/900 gf), 2 modular Hall clutch paddles
- Mount: Quick-Con adapter, 70 mm PCD (included)
- Platform: Windows PC
- Connection: USB direct or CONSPIT CAN
- Software: CONSPIT Link 2.0 and SimHub (RGB)
Who this wheel is for
The 310 APEX is for drivers who want a round wheel for GT, touring car, rally and drift, with a real display and a serious control count, without paying flagship money. Pair it with a CONSPIT ARES 12 direct drive base, compare all sim racing steering wheels, or see the full CONSPIT lineup.
Ships from within the US through Velocity Pro Sims. Not sure it fits your wheelbase? Get in touch and we will confirm before you order.
