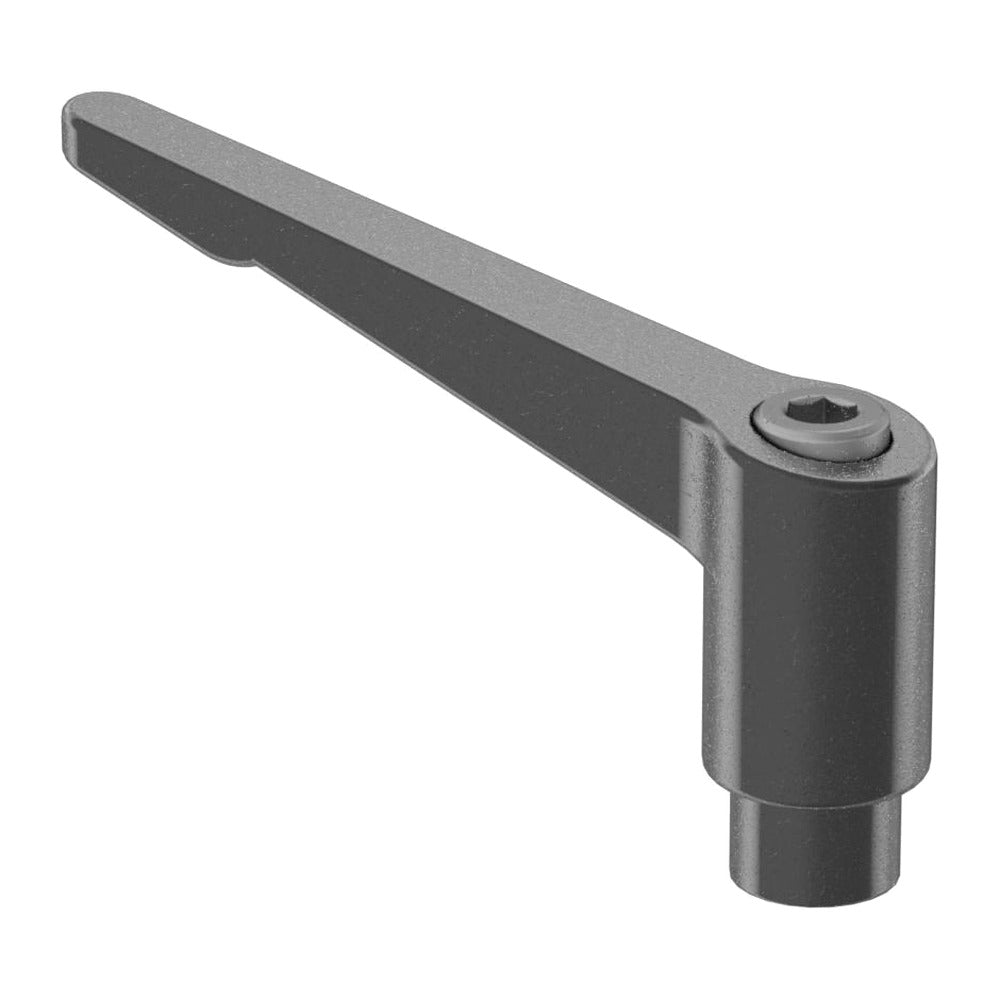

An adjustable clamping handle (also called a T-handle clamp lever or ratchet lever) that gives you repeatable, tool-free clamping anywhere you are tired of reaching for a wrench. This is the threaded-hole version — it spins onto an existing stud or bolt end, turning fixed hardware into a tool-free lever.
The glass-filled nylon body is light, comfortable in the hand, and shrugs off oil, grease and solvents, with a working range of -20° to 230° F, paired with a black-oxide steel threaded insert. Thread it onto any matching stud or bolt end, then lift the lever, swing it to a clear position and drop it to re-engage — the internal ratchet lets you get full clamping force even in tight spots where a fixed handle would stop against the frame before it was tight.
Specifications
- Thread sizes: 10-24, 10-32, 1/4"-20, 5/16"-18, 3/8"-16, 1/2"-13, M5 x 0.8 mm, M6 x 1 mm, M8 x 1.25 mm, M10 x 1.5 mm, M12 x 1.75 mm
- Thread depths: 5/16" to 11/16" · 9 mm to 17 mm
- Handle lengths: 1 3/4" to 3 5/8" · 45 mm to 92 mm
- Colors: Black / Orange (select above; some sizes come in one color)
- Temperature range: -20° to 230° F
- Sold: individually
On a sim rig, mount a stud or bolt through the slot and spin one of these on the end: pedal decks, seat sliders, wheel deck uprights, monitor stands and keyboard trays all become tool-free adjustments. They are the natural partner to the threaded rod and T-nut hardware used on 15/40-series aluminum extrusion rigs from Sim-Lab, Trak Racer, 80/20 and similar.
Pick your size in the options above — pricing varies by size. 28 size configurations available to order.
