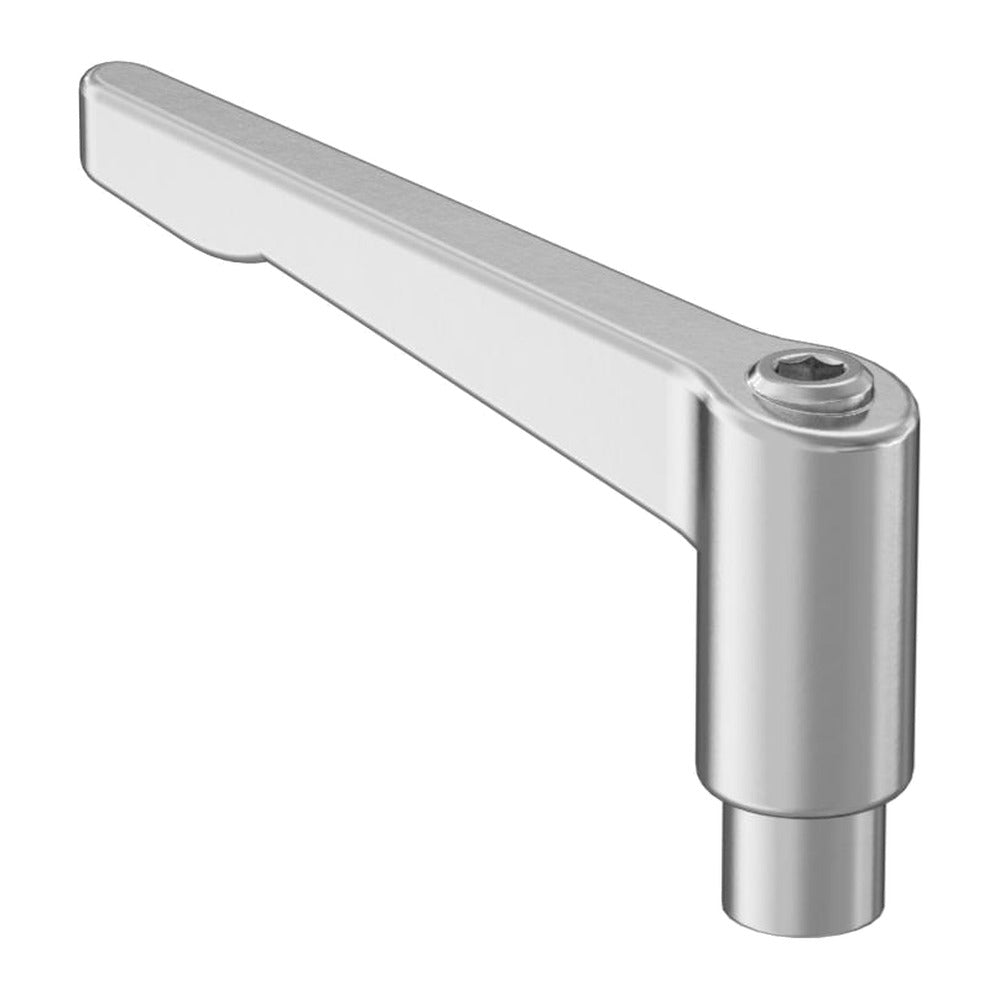

An adjustable clamping handle (also called a T-handle clamp lever or ratchet lever) that gives you repeatable, tool-free clamping anywhere you are tired of reaching for a wrench. This is the threaded-hole version — it spins onto an existing stud or bolt end, turning fixed hardware into a tool-free lever.
Machined 303 stainless steel throughout — handle and hardware — for the best corrosion resistance of any adjustable handle we carry; the right pick for harsh, damp or outdoor duty, paired with a 303 stainless steel threaded insert for extra corrosion resistance. Thread it onto any matching stud or bolt end, then lift the lever, swing it to a clear position and drop it to re-engage — the internal ratchet lets you get full clamping force even in tight spots where a fixed handle would stop against the frame before it was tight.
Specifications
- Thread sizes: 10-32, 1/4"-20, 5/16"-18, 3/8"-16, 1/2"-13, M6 x 1 mm, M8 x 1.25 mm, M10 x 1.5 mm, M12 x 1.75 mm
- Thread depths: 3/8" to 11/16" · 9 mm to 17 mm
- Handle lengths: 1 9/16" to 3 3/4" · 40 mm to 95 mm
- Sold: individually
On a sim rig, mount a stud or bolt through the slot and spin one of these on the end: pedal decks, seat sliders, wheel deck uprights, monitor stands and keyboard trays all become tool-free adjustments. They are the natural partner to the threaded rod and T-nut hardware used on 15/40-series aluminum extrusion rigs from Sim-Lab, Trak Racer, 80/20 and similar.
Pick your size in the options above — pricing varies by size. 11 size configurations available to order.
