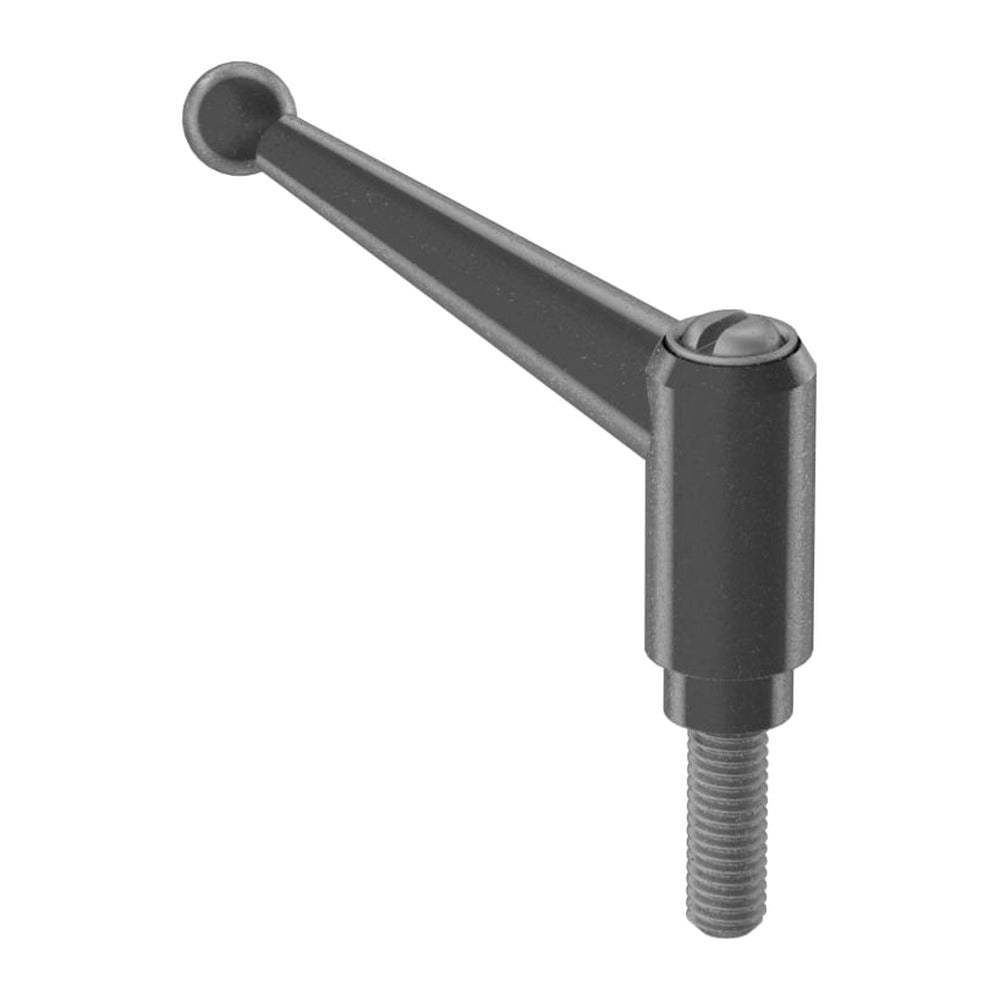

An adjustable clamping handle (also called a T-handle clamp lever or ratchet lever) that gives you repeatable, tool-free clamping anywhere you are tired of reaching for a wrench. This is the threaded-stud version — it screws into any tapped hole or T-nut, so the handle itself becomes the clamping bolt.
Handle and hardware are 303 stainless steel in the heavy-duty pattern — thicker lobes and a broader hub than the standard series, with the corrosion resistance for damp or outdoor duty, paired with a 303 stainless steel stud for extra corrosion resistance. Spin it on, snug it down, then lift the lever, swing it back to a clear position and drop it to re-engage — the internal ratchet lets you get full clamping force even in tight spots where a fixed handle would hit something before it was tight.
Specifications
- Thread sizes: 10-24, 10-32, 1/4"-20, 5/16"-18, 3/8"-16, 1/2"-13, 5/8"-11, M5 x 0.8 mm, M6 x 1 mm, M8 x 1.25 mm, M10 x 1.5 mm, M12 x 1.75 mm, M16 x 2 mm
- Stud lengths: 9/16" to 2 3/8" · 15 mm to 60 mm
- Handle lengths: 1 9/16" to 4 5/16" · 40 mm to 110 mm
- Sold: individually
On a sim rig they turn every slotted adjustment into a tool-free one: pedal deck angle and depth, seat sliders, wheel deck height, monitor and keyboard trays — anywhere a bolt head currently makes you reach for a hex key. Pair the stud with a T-nut in 15/40-series aluminum extrusion (Sim-Lab, Trak Racer, 80/20 and similar profile rigs) — the stainless heavy-duty pattern is the buy-once choice for hard-worked or outdoor setups.
Pick your size in the options above — pricing varies by size. 66 size configurations available to order.
