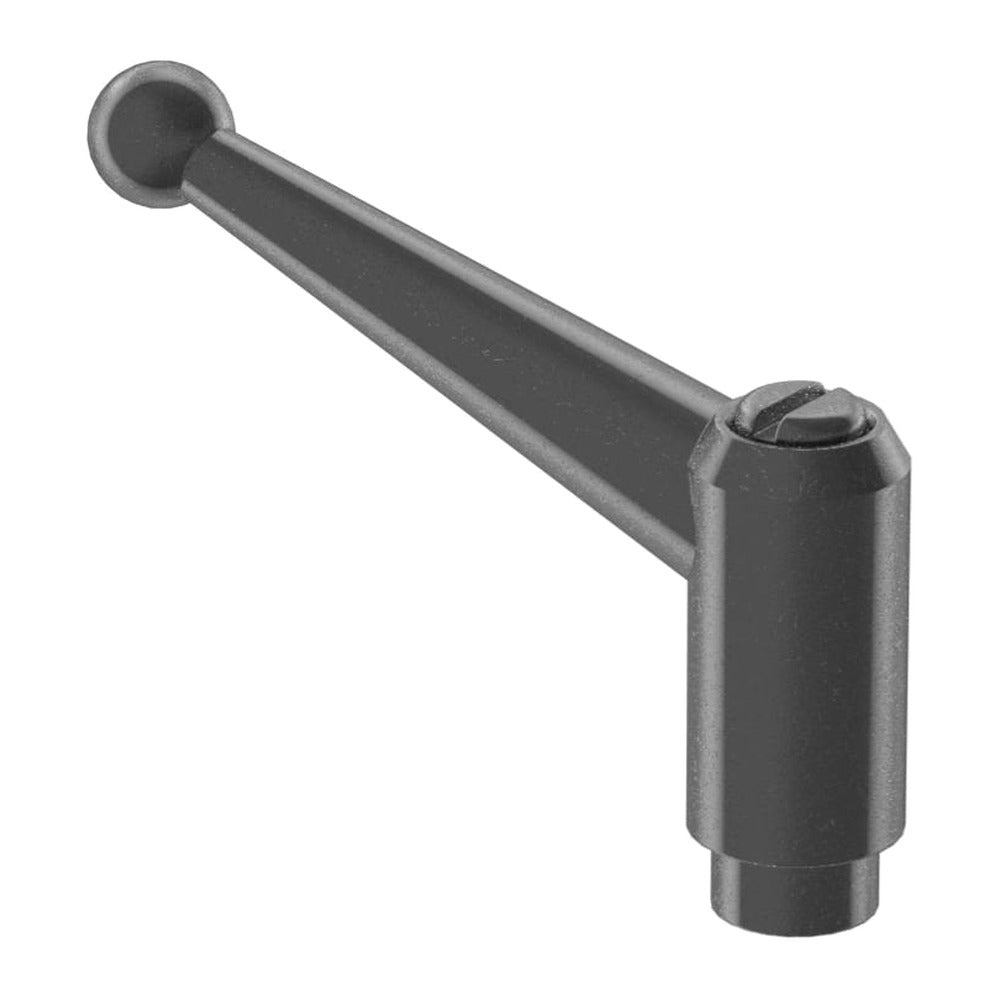

An adjustable clamping handle (also called a T-handle clamp lever or ratchet lever) that gives you repeatable, tool-free clamping anywhere you are tired of reaching for a wrench. This is the threaded-hole version — it spins onto an existing stud or bolt end, turning fixed hardware into a tool-free lever.
Handle and hardware are 303 stainless steel in the heavy-duty pattern — thicker lobes and a broader hub than the standard series, with the corrosion resistance for damp or outdoor duty, paired with a 303 stainless steel threaded insert for extra corrosion resistance. Thread it onto any matching stud or bolt end, then lift the lever, swing it to a clear position and drop it to re-engage — the internal ratchet lets you get full clamping force even in tight spots where a fixed handle would stop against the frame before it was tight.
Specifications
- Thread sizes: 10-24, 10-32, 1/4"-20, 5/16"-18, 3/8"-16, 1/2"-13, 5/8"-11, M5 x 0.8 mm, M6 x 1 mm, M8 x 1.25 mm, M10 x 1.5 mm, M12 x 1.75 mm, M16 x 2 mm
- Thread depths: 3/8" to 7/8" · 9 mm to 23 mm
- Handle lengths: 1 9/16" to 4 5/16" · 40 mm to 110 mm
- Sold: individually
On a sim rig, mount a stud or bolt through the slot and spin one of these on the end: pedal decks, seat sliders, wheel deck uprights, monitor stands and keyboard trays all become tool-free adjustments — the stainless heavy-duty pattern is the buy-once choice for hard-worked or outdoor setups.
Pick your size in the options above — pricing varies by size. 18 size configurations available to order.
