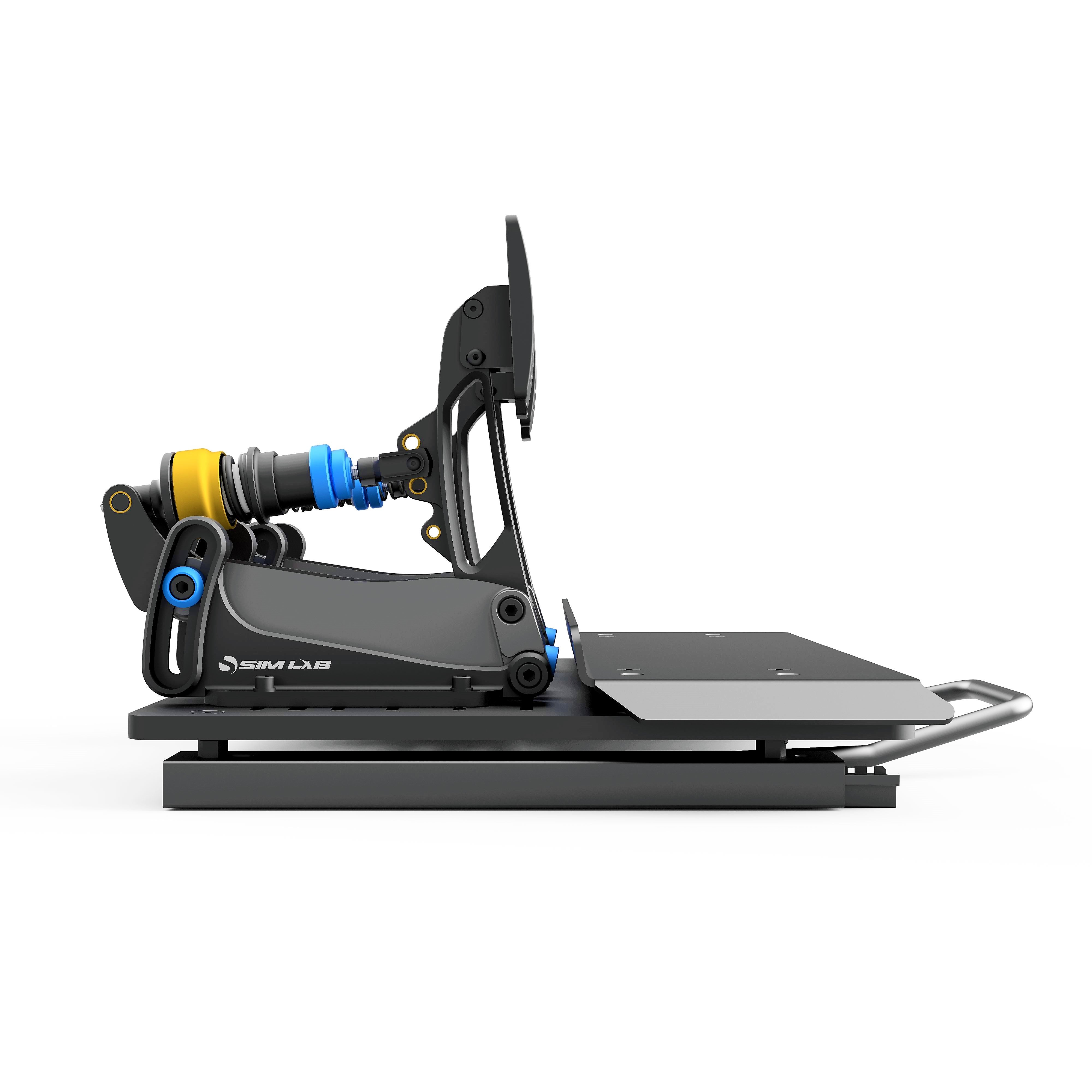

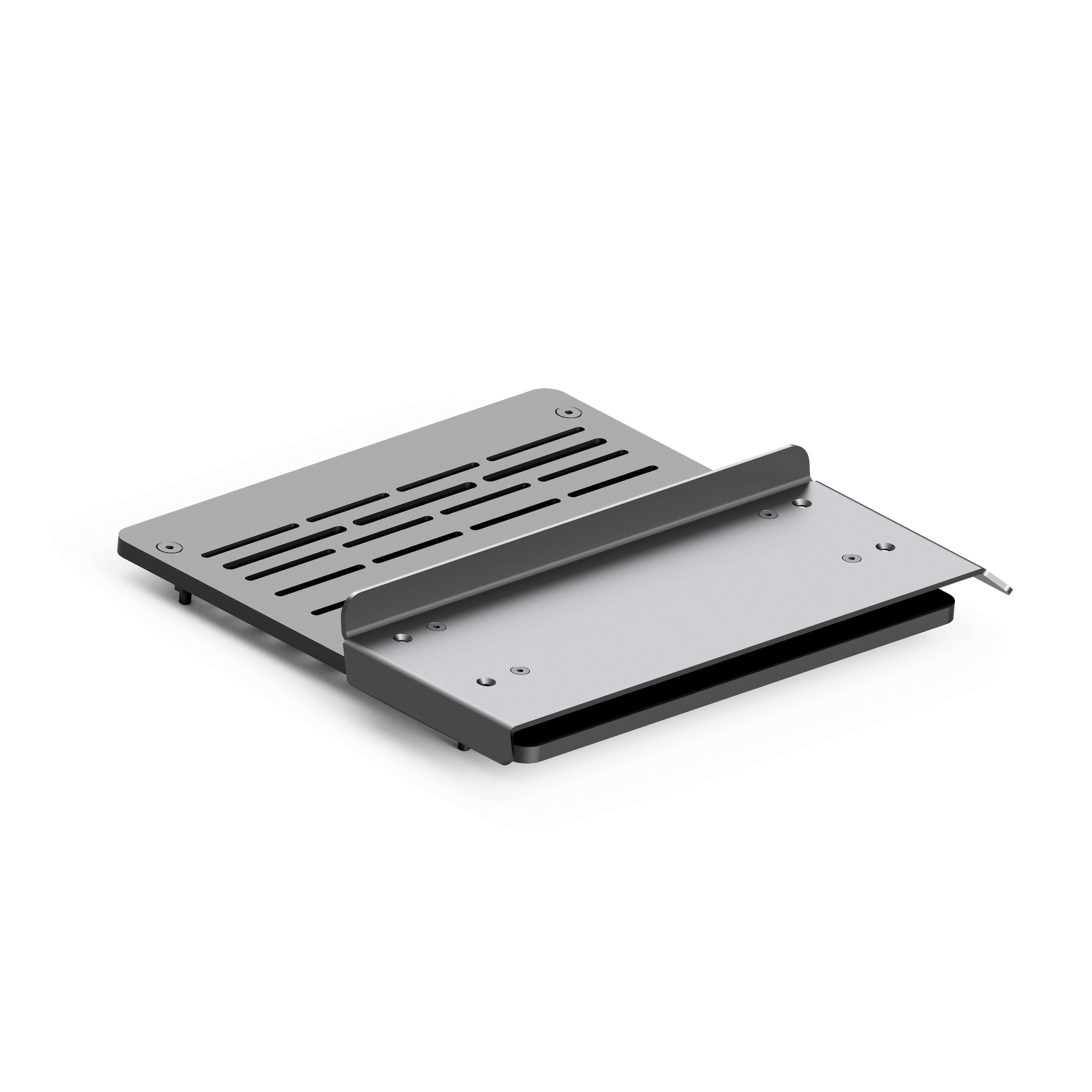

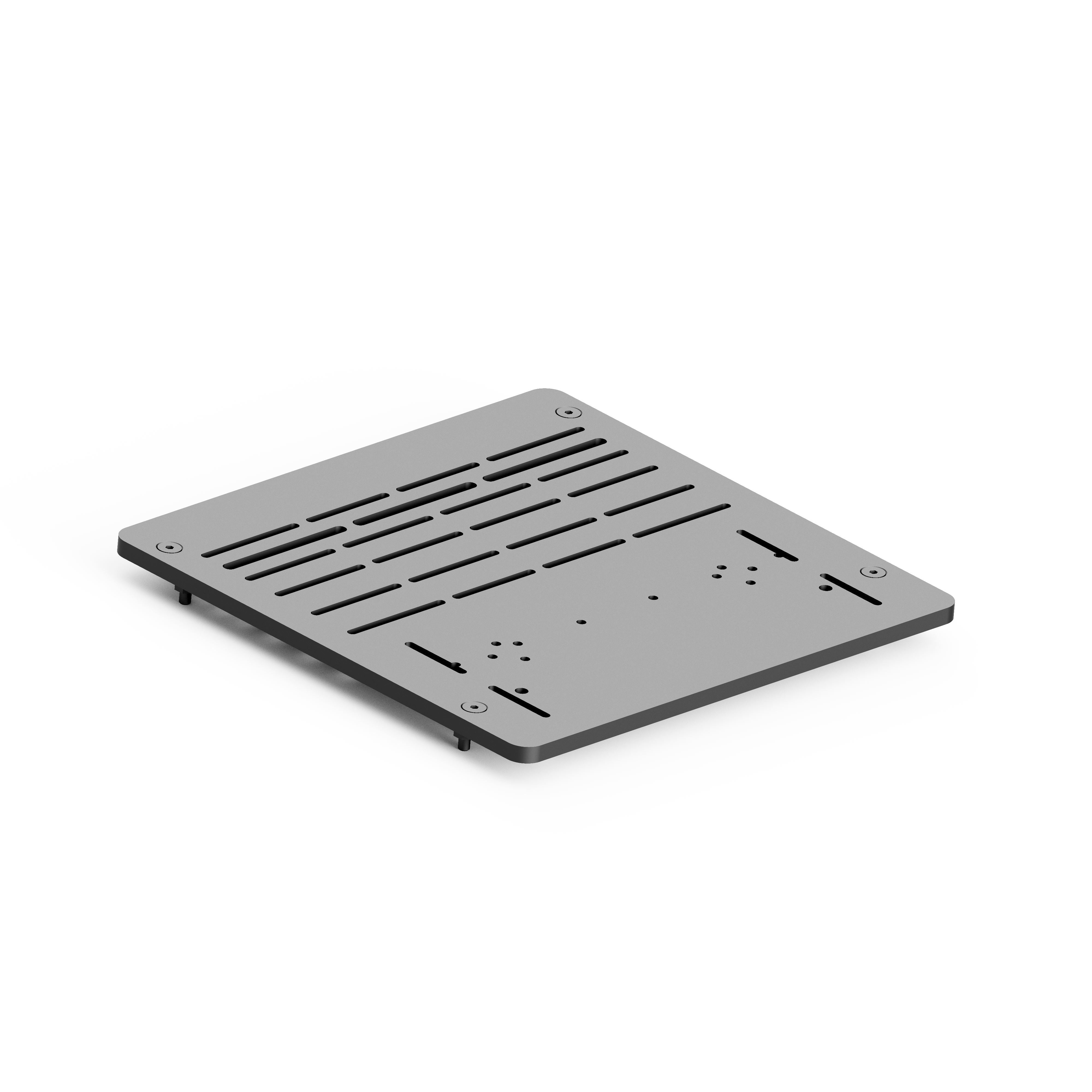

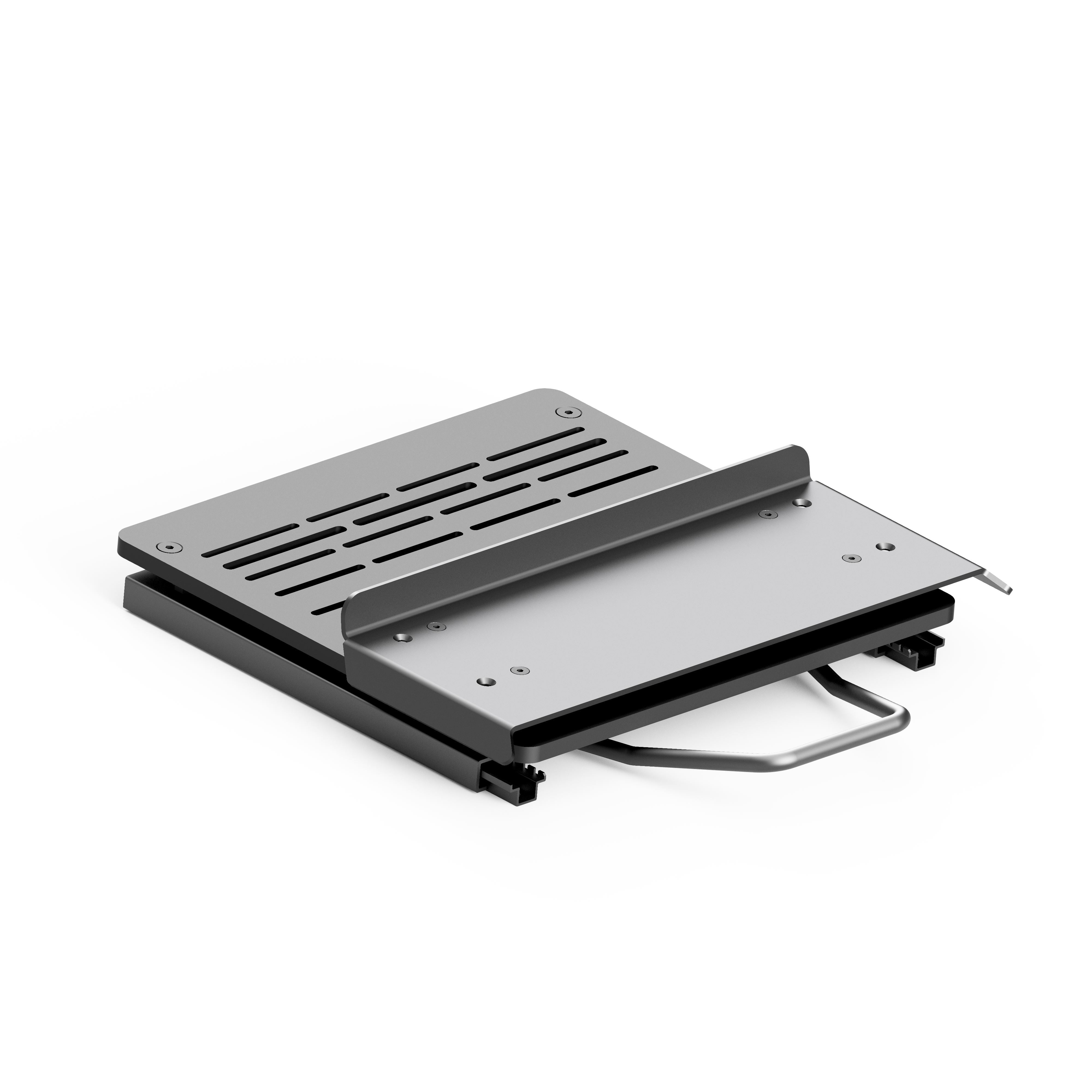

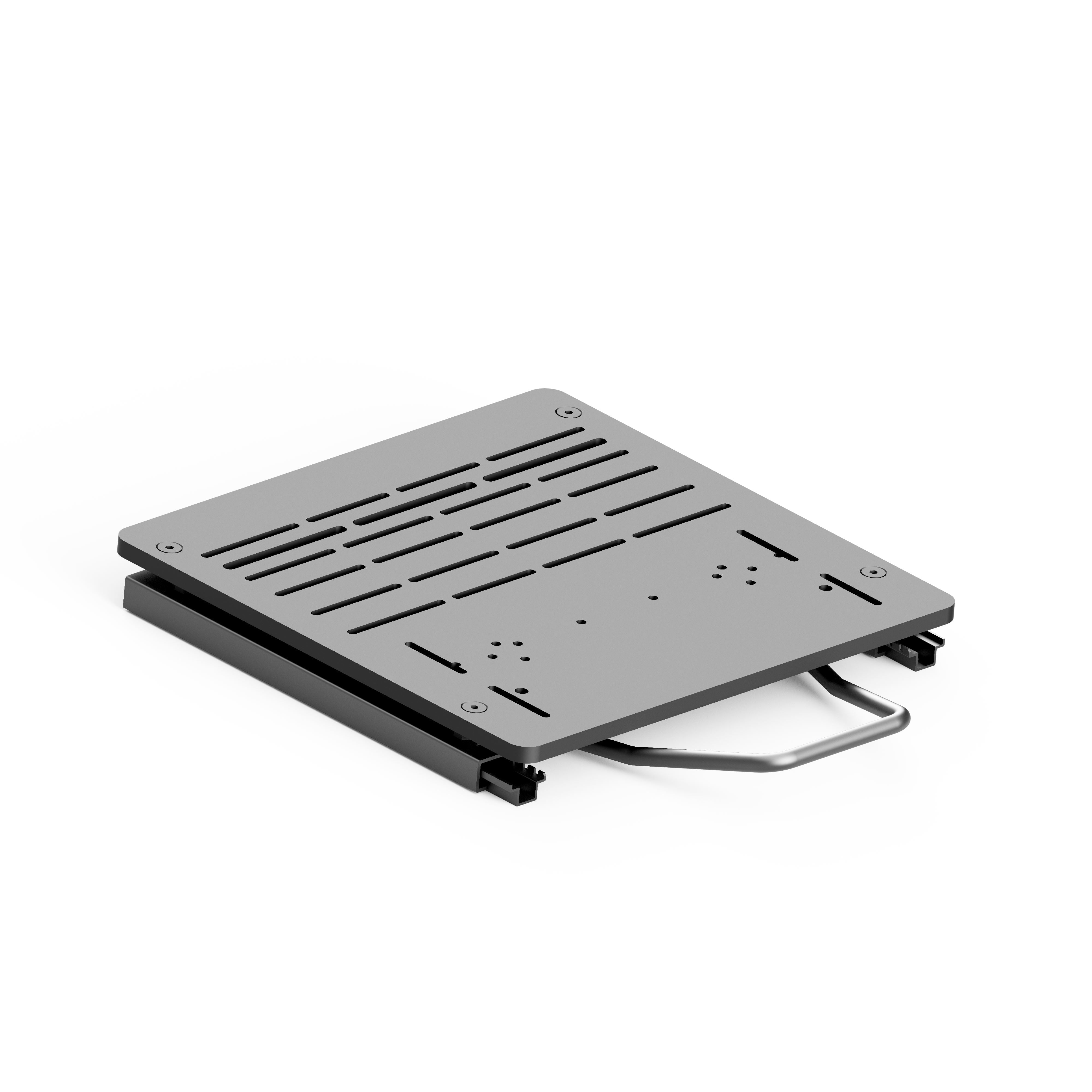

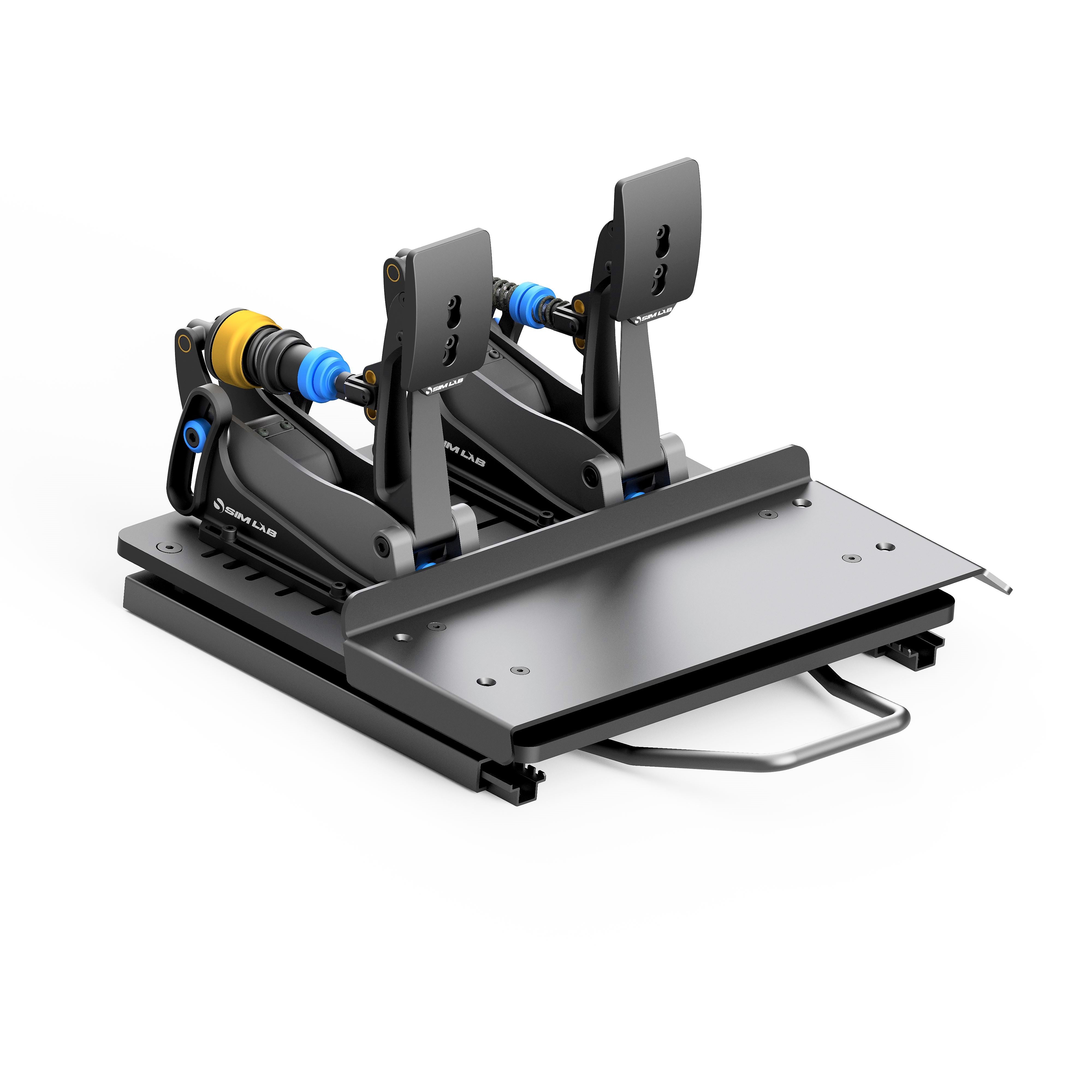

The Sim-Lab pedal slider baseplate gives your pedals a single rigid mounting surface that bolts to the Sim-Lab seat slider for quick fore and aft adjustment. It also works perfectly well on its own as a heel rest and stable pedal platform.
Now upgraded from 10 mm to 12 mm thick, it is stiffer under heavy braking and pre-drilled for an unusually wide range of pedal sets.
Rig compatibility
- P1X, P1X Ultimate, P1X Pro, GT1 Pro and classic GT1
- 80/20-based pedal decks
- GT1-EVO rigs from 2020 onward with the steel pedal deck
Pedal compatibility
- Sim-Lab XP1
- Asetek Invicta, Forte, La Prima
- BJ Steel F1 / GT
- Cube Controls SP-01
- Fanatec ClubSport V3 and Inverted V3, CSL and CSL Elite LC, CSL V2, Elite, Podium
- Heusinkveld Pro, Sprint, Ultimate, Ultimate+
- Insim Talento
- Logitech G25, G27, G29, G920, Pro Pedals, G RS
- Moza CRP, SR-P
- PurrPRO
- Simagic P1000, P2000 (with baseplate)
- SimCoaches P1-3
- Simjack UT
- SIMSONN pedals
- SRP Formula-R V5
- Simtrecs ProPedal GT
- Simucube Active Pedal and ActivePedal Ultimate
- SimWorkx Pro pedals
- Simgrade R7 and VX-PRO
- Thrustmaster T300 / TX, T-LCM, T3PA, T3PA-PRO
- VNM / Venym pedals
- VRS DirectForce Pro
Fanatec CSL with the load cell kit mounts using both front holes and two of the three back holes on the accelerator and brake, and requires M6 bolts and washers. Thrustmaster T-LCM and Logitech pedals mount using the top slot.
