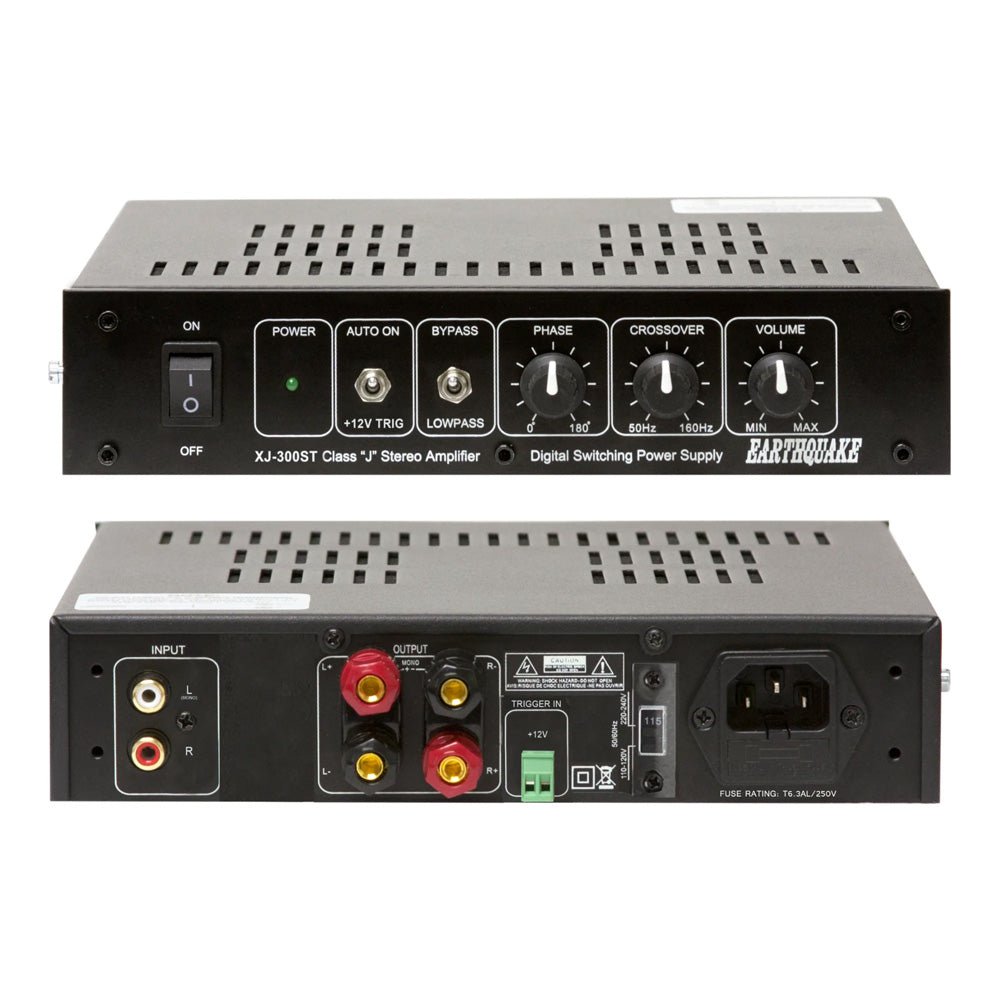

Earthquake - XJ-300ST Amplifier for Tactile Transducers

Features

• Class J Stereo Design: Provides cool running power with a compact and installer-friendly size.

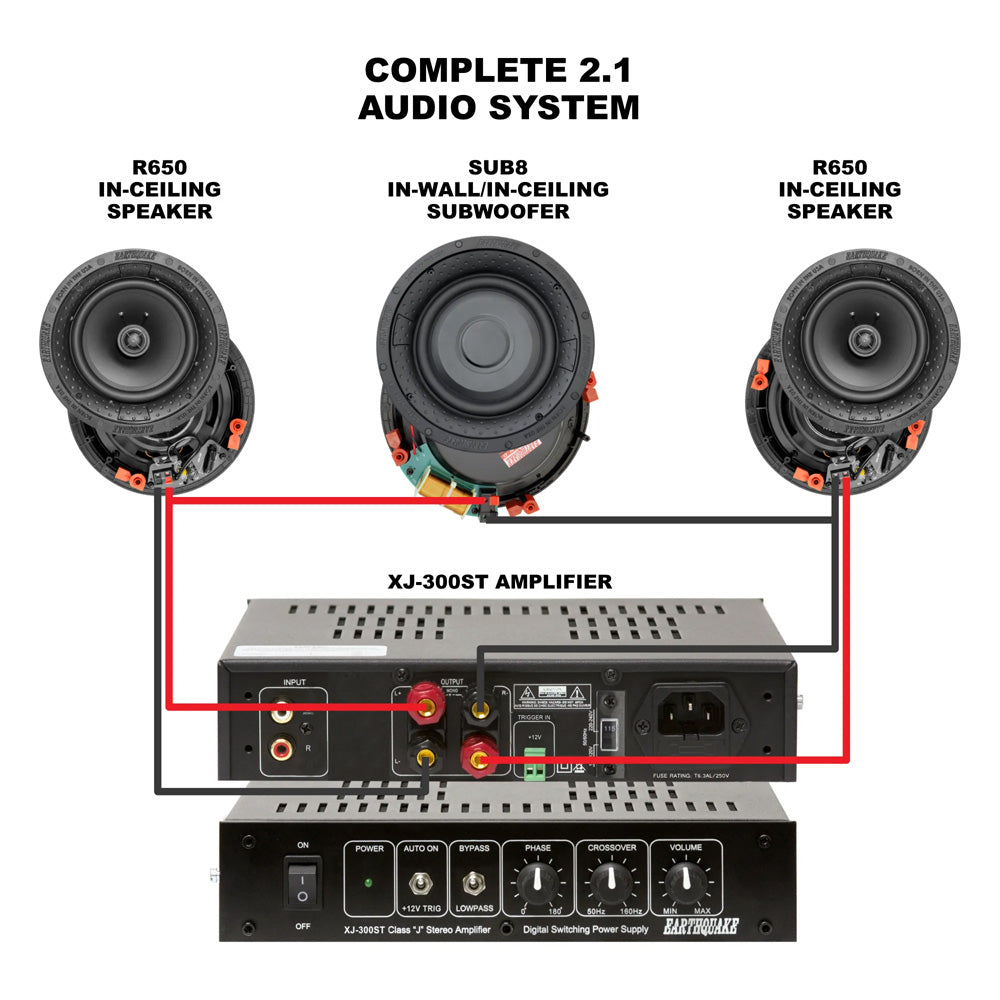

• Customizable Channel Setup: Allows for MONO bridged, 2-channel, and 2.1-channel wiring configurations.
• Versatile Applications: Suitable for multi-channel audio systems.

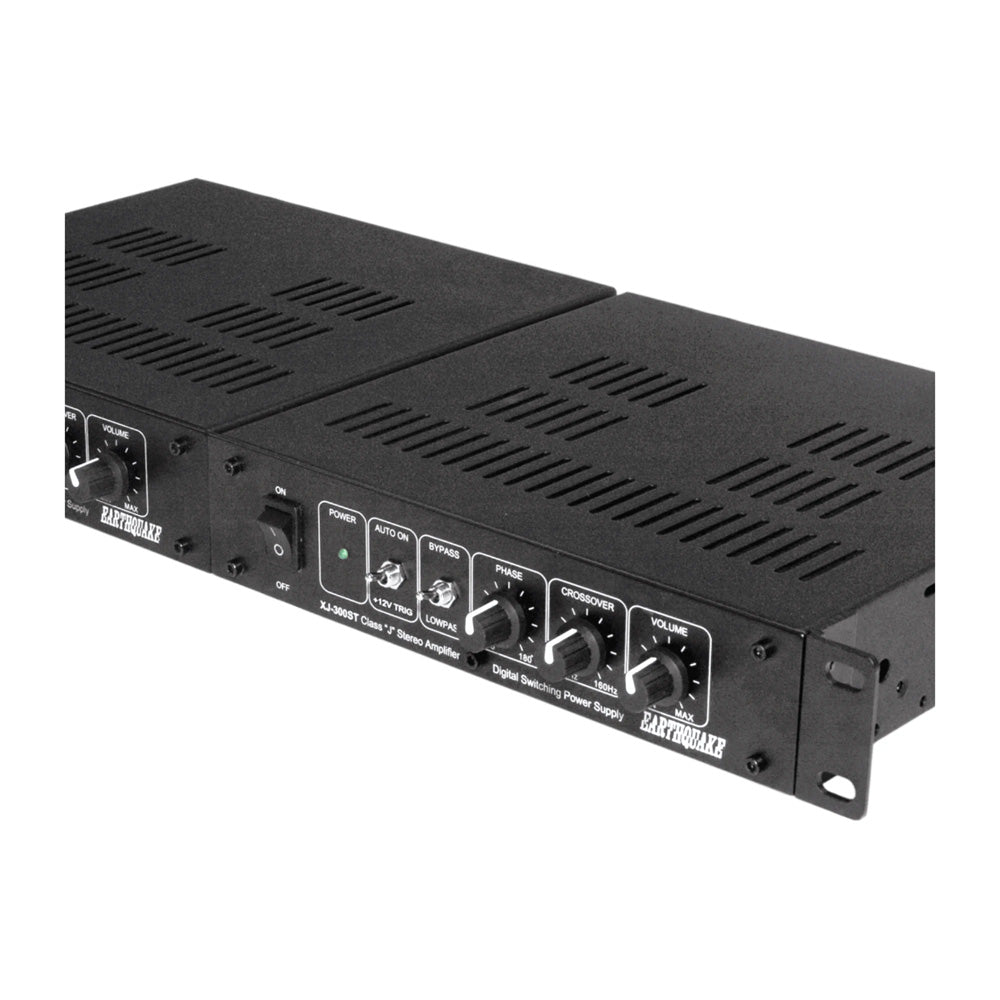

• Interlocking Design: Join two XJ-300STs for side-by-side rack mounting.
• 1U Rack Space: Tall with half-rack width chassis.
• Signal Sensing Toggle Switch: With +12V trigger input.
• Selective Variable Crossover: Bypass/lowpass toggle switch to turn crossover on or off.
• Phase Adjustment: 0–180° phase adjustment.
• Voltage Selector: 110V/220V AC selector.
• RCA Inputs: Volume control for easy integration.
• Mounting Options: Includes 4 detachable short rack ears for both rack and wall mounting, back bracket, and optional long ear extension brackets (RM-300FR).
• Award Recognition: Technology Integrator’s 2016 Impact! Awards Finalist.

Specifications

• Output Power:
  • 2 x 110 WRMS @ 8-Ohm
  • 2 x 170 WRMS @ 4-Ohm
  • 170 WRMS @ 8-Ohm Mono Bridged
  • 300 WRMS @ 4-Ohm Mono Bridged
• Frequency Response: 20Hz–20kHz
• Input Impedance: 10 kOhm
• Impedance: 4–8 Ohm
• Crossover Frequency: 50Hz–160Hz
• SNR: > 97 dB
• Damping Factor: > 400
• THD: < 0.08%

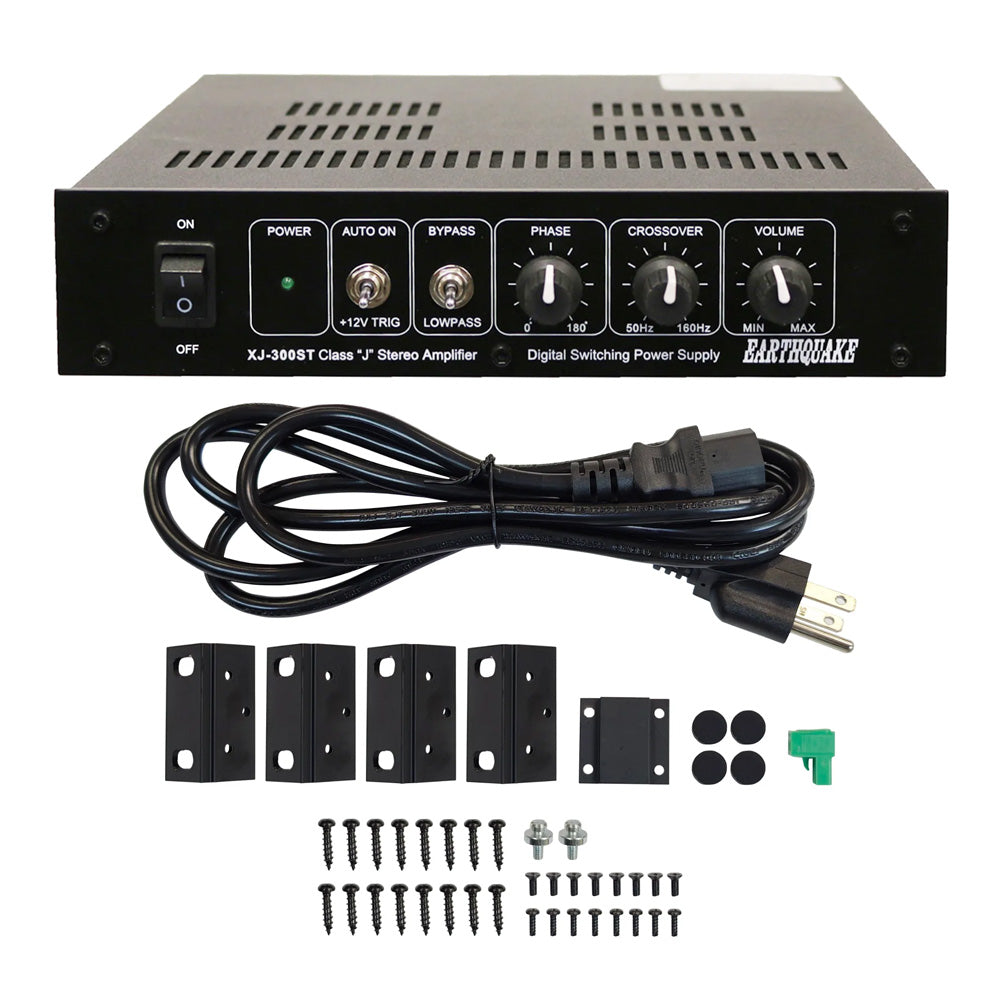

In The Box

• (1) XJ-300ST Stereo Class J Amplifier
• (4) Short Mounting Ears (with mounting screws)
• (1) Back Bracket (with mounting screws)
• (4) Rubber Feet
• (1) Power Cord
