The ASR-F is the result of a year-long quest to create the ultimate Formula-style racing position with an aluminum profile build. It is the most robust Formula-style sim racing chassis ever made, featuring a 6" base, 4.5" pedal plate support extension, and a wheel base support column. This design brings out the true potential of powerful sim racing peripherals with zero flex and no weak points.
The large aluminum pieces allow for various adjustments, letting sim racers of all builds achieve their ideal Formula-style position. Available in Racing Red and Infinite Black, the ASR-F is made from top-grade aluminum sourced in the USA and assembled in Canada with great care. It suits most builds and heights up to 6'6" (1.98m).
All steel parts, including wheel mounting plates and pedal plates, come in a textured matte black finish.
Wheel Deck Options:
- Standard Wheel Deck: For entry-level and mid-range products from Thrustmaster, Fanatec, and Logitech.
- Podium DD Side Mount: For Fanatec Podium DD1/DD2 Series.
- CSL DD Pro Side Mount: For Fanatec CSL DD & GT DD Pro.
- Front Mount: For MiGE motor-type wheelbases, including Simucube products, Simagic Alpha/Alpha Mini, VRS products.
Pedal Tray Options:
- Steel Pedal Plate
- Aluminum Pedal Deck & Heel Rest
Specifications:
- Base Length: 40"
- Base Width: 22"
- Chassis Length: 56" (including the pedal tray support base)
- Chassis Width: 25" (including the wheel base column)
- Full Product Width: 29" (including support feet)
- Height at Wheel Base Column Tip: 32"
- Height at Pedal Tray (flat): 18"
- Height at Pedal Tray (fully angled): 21.5"
What's Included:
Box 1 (Aluminum): 51" x 6" x 4"
- 1 x 40" x 6" x 1.5" aluminum profile
- 1 x 19" x 6" x 1.5" aluminum profile
- 1 x 26" x 4.5" x 1.5" aluminum profile

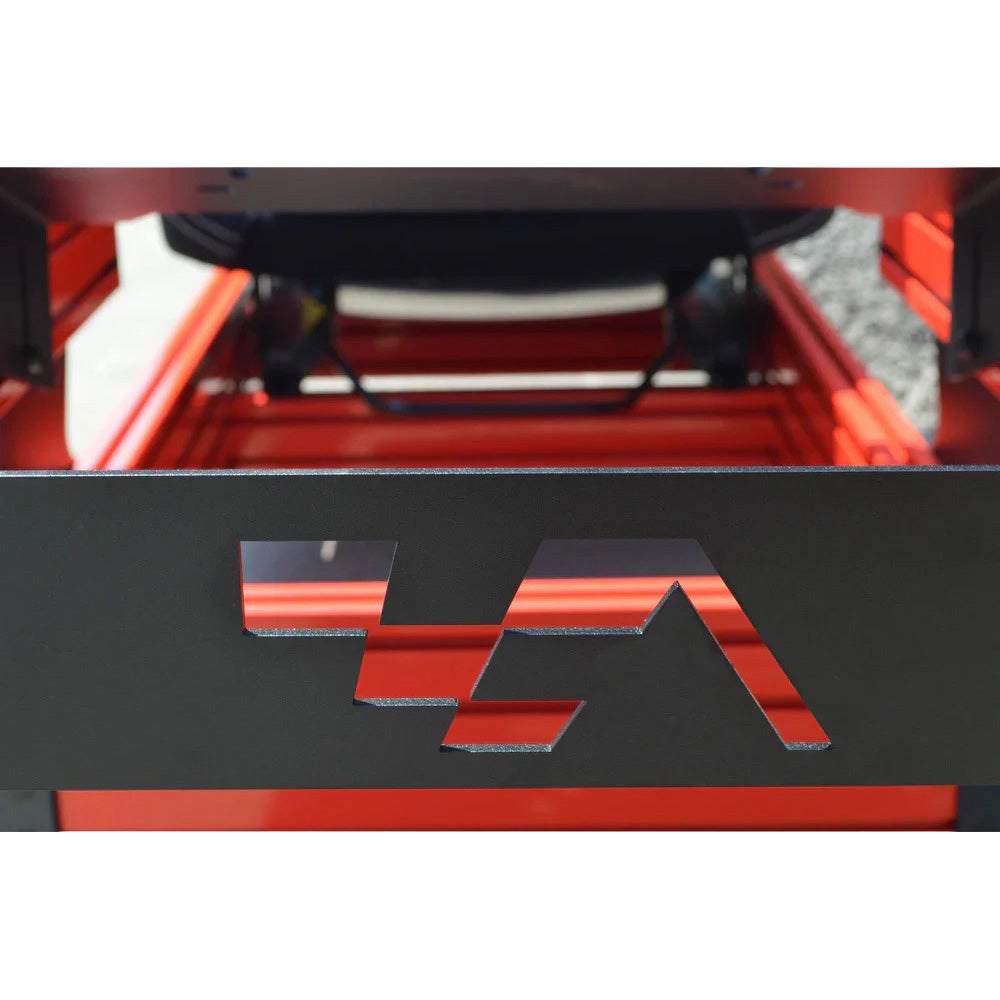

- Front plate with Advanced SimRacing crest
Box 2 (Aluminum): 51" x 6" x 4"
- 1 x 40" x 6" x 1.5" aluminum profile
- 2 x 19" x 3" x 1.5" aluminum profiles
- 1 x 26" x 4.5" x 1.5" aluminum profile
Box 3 (Aluminum): 30" x 6" x 3"
- 2 x 28" x 4.5" x 1.5" aluminum profiles
Box 4 (Hardware): 16" x 12" x 3"
- 1 x Left Side Z-Shaped Steel Plate
- 1 x Right Side Z-Shaped Steel Plate
- 26 x M8 Flathead Screws (20mm)
- 26 x M8 T-Nuts
- 12 x Corner Gusset and Plastic Caps
- 42 x M8 Socket Cap Screws (16mm)
- 42 x M8 T-Nuts
- 34 x M8 Washers
- 4 x M8 Button Head Screws (16mm) for the Front Plate
- Seat mounting hardware: 4 x M8 Screws (12mm), 4 x M8 T-Nuts
- Endcaps: 4 x 6" Endcaps, 6 x 4.5" Endcaps, 36 x Pushpins
- 4 x Steel Triangle Plates
- 4 x Adjustable Feet
- 4 x M8 Locking Nuts
Box 5 (Wheel Deck Selection): 13" x 10" x 3"
- Depending on your selection: Standard Wheel Deck, Podium DD Side Mount, Podium DD Side Mount and Front Mount, or CSL DD Pro Side Mount
- 8 x M8 Flathead Screws (16mm)
- 8 x M8 T-Nuts
- 2 x 7.5" x 3" x 1.5" aluminum profiles
Box 6 (Pedal Support) Depending on your selection
- Steel Pedal Plate: 19" x 16" x 4", 1 x 3/16" Steel Pedal Plate
Compatibility:
Standard Wheel Deck:
- Logitech products, Thrustmaster products, Fanatec entry-level and mid-range products (including CSL DD and Podium DD products), Simagic M10, AccuForce Pro V2 Steering System, Moza R9, R12, R16, R21, MOZA R5 (only back two bolts)
Fanatec (Podium DD & CSL DD Side Mount):
- Fanatec Podium DD1 & DD2, CSL DD, GT DD Pro, ClubSport DD and DD+
Asetek (Front Mount):
- All Asetek Wheel bases
Simucube & MiGE Motor (Front Mount):
- Simucube 2 Sport, Pro & Ultimate, VRS Direct Force Pro, AccuForce Pro V2 Steering System, Simagic Alpha/Alpha Mini, other MiGE motor-type wheelbases
Steel Pedal Plate:
- Heusinkveld, Sim Pedals Sprint, Ultimate, Ultimate+, Thrustmaster products, Fanatec (except CSR Pedals), Logitech products, Simtrecs ProPedal GT, Asetek SimSports Invicta Sim Racing Pedals, Simagic P1000 & P2000, and many more (please inquire for specific pedal sets)
Aluminum Pedal Deck & Heel Rest:
-
Heusinkveld, Sim Pedals Sprint, Ultimate, Ultimate+, MECA Cup1, Simtrecs ProPedal GT, Sim Coaches P1-2/3 Pro Hydraulic Pedals, Simforge Engineering Mark-1, RaceWerks S1 PRO, Simworks PRO GT V3.1 LC Pedal Set, HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required), and many more (please inquire directly for specific pedal sets)
-
NOT COMPATIBLE with the Logitech G29 pedal set or the Fanatec ClubSport Pedals V3
